ASME B16.11 Socket Weld Reducer

Share
by Unichem Steel

ASME B16.11 Socket Weld Reducer Supplier, Manufacturer in India

ASME B16.11 Socket Weld Reducers Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is one of the biggest Manufacturers, Exporter, and Supplier of Forged Socket Weld Reducer Fittings in India. the two main types of Socket Weld Reducers are offered are Socket Weld Eccentric Reducers and Socket Weld Concentric Reducers. we offer a Concentric / Eccentric Reducer, which is offered in varied grades and technical specifications. Available at economical rates, The offered Concentric / Eccentric Reducer is widely utilized in the metallurgical, mechanical, electrical construction field, military uses, and automobile rear of products. The proffered series is formed available in numerous thickness specifications. Our offered range is developed using high-quality material and advanced technology. they’re having some great features like Optimum strength, Sturdy, High resistance to corrosion, Corrosion resistance, High strength. This Reducer Insert is appreciated for its robust construction. Forged Socket Weld Reducer Insert is fabricated using different grads material as per the requirement. The manufacturing process includes hot and cold working operations. These also are processed from metal treatment operations to understand desired mechanical properties and attributes. These processes also refine the corrosion resistance property of Forged Socket Weld Reducer Pipe Fittings.

Largest Stockist of ANSI/ASME B16.11 Socket Weld Reducers, Socket Weld Concentric Reducers, Socket Weld Eccentric Reducers in Mumbai. Socket Weld Reducer dimensions

Most Trusted Exporters of ANSI/ASME B16.11, MSS SP-79, MSS-SP-95, 83, 97 Socket Weld Reducers in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.11 Socket Weld Reducers Specifications

Specifications

ASME SA182, SB564 / 160 / 472, SB 61/62/151/152, SA105/694/350 / ASTM A182, B564/160/472, B61/62/151/152, A105/A694/A350

Standards / Dimensions

ANSI/ASME B16.11, MSS SP-79, MSS-SP-95, 83, 97

Size & Thickness

1/8″~4″(DN6~DN100)

ASME B16.11 Socket Weld Reducers Specifications
Socket Weld Pressure Class

2000LBS, 3000LBS, 6000LBS, 9000LBS

Type

Socket Weld

Forms

Concentric Reducers, Eccentric Reducers


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Socket Weld Fittings in the form of 45 Degree Elbow | 90 Degree Elbow | 180 Degree Elbow | Equal Tee | Unequal/Reducing Tee | Concentric Reducer | Eccentric Reducer | Equal Cross | Unequal/Reducing Cross | End Caps | Full Coupling| Half Coupling | Pipe Cap | Union | Reducer Insert | Boss | Branch Outlet | Lateral Outlet | Elbow Outlet | Pipe Nipple | Adapters at Best Prices in India.

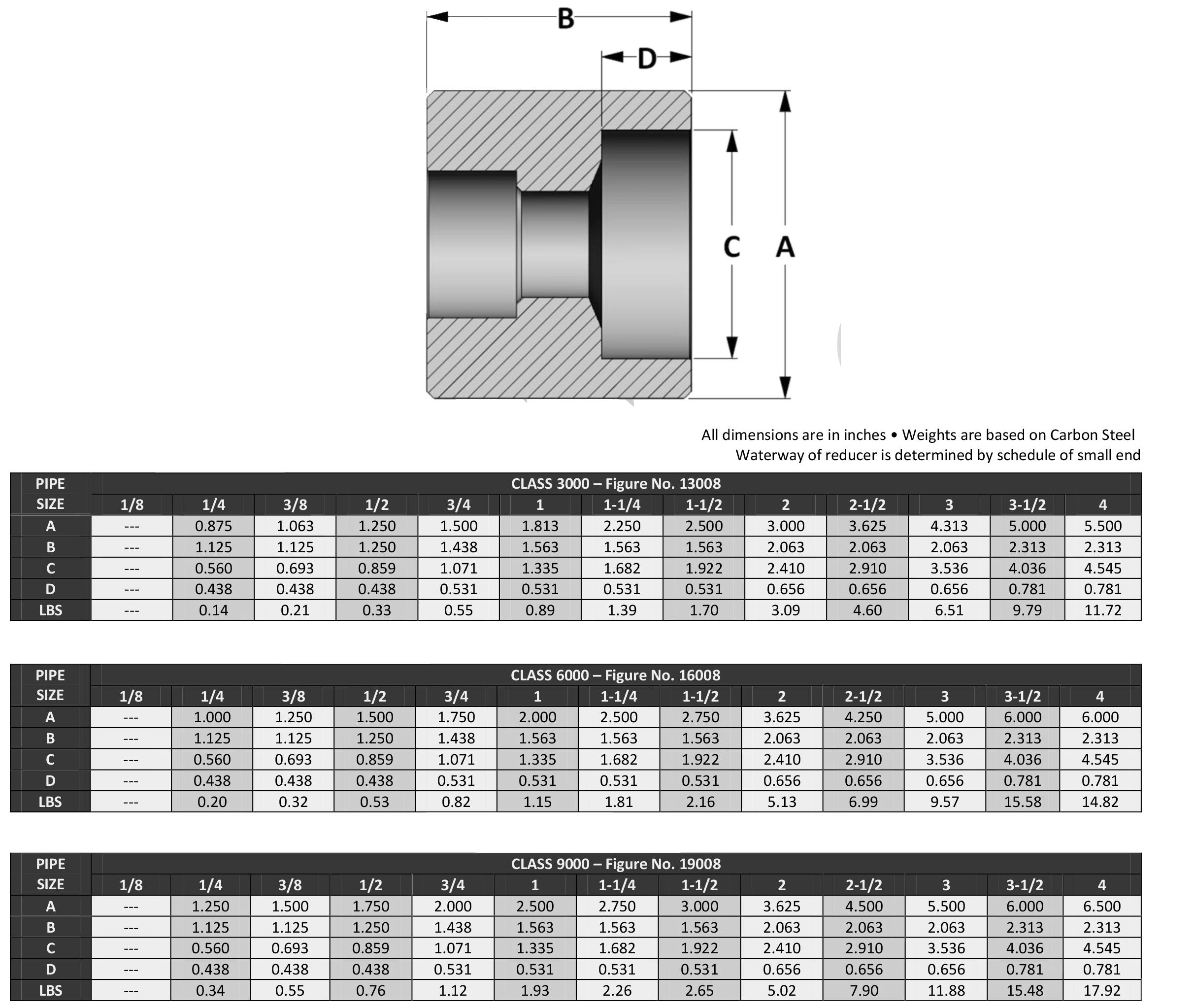

ASME B16.11 Socket Weld Reducers Dimensions

ASME B16.11 Socket Weld Reducers Dimensions

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ASME B16.11 Socket Weld Concentric Reducer. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Socket Weld Eccentric Reducer. Socket Weld Reducer are provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on Socket Weld Reducer Fittings.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing of custom size ANSI B16.11 Socket Weld Eccentric Reducer Forged Fittings with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our Socket Weld Concentric Reducer.
  • As leading exporters and suppliers we keep a buffer stock of Socket Weld Reducer Pipe Fittings in all grades from ½” NB to 4” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • Socket Weld Fittings (Concentric Reducer / Eccentric Reducer) are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Socket Weld Reducer Fittings are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on Socket Weld fittings.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 10204 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Socket Weld Forged Reducer in India.

ASME B16.11 Socket Weld Reducer Material & Grades

Stainless Steel Socket Weld Reducer
ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Socket Weld Reducer
ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70
Alloy Steel Socket Weld Reducer
ASTM A182: F1, F5, F9, F11, F22, F91
Duplex & Super Duplex Steel Socket Weld Reducer
ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61.
Nickel Alloy Socket Weld Reducer
ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

ASME B16.11 Socket Weld Reducer Manufacturing Standards

ASME Standard ASME/ANSI B16.11, MSS SP-79, MSS-SP-95, 83, 97
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.11 Socket Weld Fittings, Socket – Welding and Threaded
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Piping Socket Weld Fittings
MSS SP-95 Swage(d) Nipples and Bull Plugs

Socket Weld Reducer by Size, Class, and Wall Thickness

Description Class Designation
3000 6000 9000
Concentric Reducer / Eccentric Reducer 1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
Pipe Size
by Wall Thickness		 SCH 80 / XS SCH 160 XXS

Ready Stock of ASME B16.11 Socket Weld Reducer in India

Forged Socket weld Concentric Reducer Forged Socket weld Eccentric Reducer
6000LB Socket Weld Fittings Reducer SS Forged Concentric Reducer
ANSI B16.11 Forged Fitting Reducer BS 3799 Forged Steel Eccentric Reducer
Hastelloy Forged Socket Weld Reducer Fitting Inconel Socket weld Eccentric Reducer
ASME B16.11 Socket weld Reducer Reducer 3000LB Socket Weld
Stainless Steel Concentric Reducer 9000LB Socket Weld Pipe Reducers
High Quality Socket weld Reducer Manufacturers ASTM A182 Socket weld Stainless Steel Reducer

ASME B16.11 Socket Weld Reducer Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies
ASME B16.11 Socket Weld Reducer Applications and Uses

ASME B16.11 Socket Weld Reducer Exporter

EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.

ASME B16.11 Socket Weld Reducer Supplier

Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

Contact us to get a quick quote for ASME B16.11 Socket Weld Reducer.

WE ARE OFFERING SOCKET WELD REDUCER FITTINGS AS PER ISO, DIN, JIS OR ANSI STANDARD.

Request a Quote —>
