ASME B16.11 Socket Weld Half Coupling Supplier, Manufacturer in India
Unichem Steel & Alloy Pvt. Ltd. is one of the well-known Manufacturers, Suppliers, and Exporters of Forged Socket Weld Half Coupling, which is manufactured using high-grade steel at our end. ASME B16.11 Socket Weld Half Coupling is used for little bore branching from a vessel or large bore pipe. It is socket type. it’s a socket endwise only one side. A socket weld half coupling is directly welded to an oversized bore pipe, to create a branch connection. The Socket Weld Half Coupling is directly welded to the run pipe, to form branch connections. Forged Socket Weld Half coupling is socket welding in one end and butt welding is for the opposite end. The socket pipe half coupling is widely utilized in pipes of various calibers, including single-pass, three-way, four-way, and may also be used for water meters and valves. These Socket Weld fittings are also used for fluid conduits during which each end portion of the tubes is to be connected. ANSI B16.11 Forged Socket Weld Half Couplings are mostly used for instrumentation hook-ups. These ASME B16.11 Socket Weld Half Couplings are offered to the customers in various sizes in order to fulfill their specific requirements.

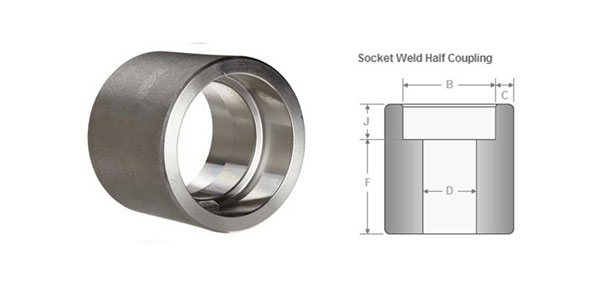

Largest Stockist of ANSI/ASME B16.11 Socket Weld Half Coupling in Mumbai. Socket Weld Half Coupling dimensions
Most Trusted Exporters of ANSI/ASME B16.11, MSS SP-79, MSS-SP-95, 83, 97 Socket Weld Half Coupling in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.
ASME B16.11 Socket Weld Half Coupling Specifications
Specifications
ASME SA182, SB564 / 160 / 472, SB 61/62/151/152, SA105/694/350 / ASTM A182, B564/160/472, B61/62/151/152, A105/A694/A350
Standards / Dimensions
ANSI/ASME B16.11, MSS SP-79, MSS-SP-95, 83, 97
Size & Thickness
1/8″~4″(DN6~DN100)
Socket Weld Pressure Class
2000LBS, 3000LBS, 6000LBS, 9000LBS
Type
Socket Weld
Forms
Half Coupling
ASME B16.11 Socket Weld Half Coupling Dimensions
NPS 1/2 to 4 Class 3000 Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket wall THK |
|---|---|---|---|---|
| B | J | D | C | |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
| NPS | Laying lengths | |||
|---|---|---|---|---|
| Coupling E |
Half coupling F |
|||
| 1 | 13 | 29 | ||
| 1/2 | 9.5 | 22.5 | ||
| 3/4 | 9.5 | 23.5 | ||
| 1.1/4 | 13 | 30 | ||
| 1.1/2 | 13 | 32 | ||
| 2 | 19 | 41 | ||
| 2.1/2 | 19 | 42.5 | ||
| 3 | 19 | 44.5 | ||
| 4 | 19 | 47.5 | ||
NPS 1/2 to 2 Class 6000 Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket wall THK |
|---|---|---|---|---|
| B | J | D | C | |
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
| 1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
| 1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
| NPS | Laying lengths | |||
|---|---|---|---|---|
| Coupling E |
Half coupling F |
|||
| 1/2 | 9.5 | 22.5 | ||
| 3/4 | 9.5 | 23.5 | ||
| 1 | 13 | 29 | ||
| 1.1/4 | 13 | 30 | ||
| 1.1/2 | 13 | 32 | ||
| 2 | 19 | 41 | ||
Why Purchase From Unichem Steel & Alloy Pvt. Ltd.
- Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ASME B16.11 Socket Weld Half Coupling. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Socket Weld Half Coupling. Socket Weld Half Coupling is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
- Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on Socket Weld Half Coupling Fittings.
- Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing of custom size ANSI B16.11 Socket Weld Half Coupling Forged Fittings with accurate dimensions and uniform wall thickness.
- We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our Socket Weld Half Coupling.
- As leading exporters and suppliers we keep a buffer stock of Socket Weld Half Coupling Pipe Fittings in all grades from ½” NB to 4” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
- Socket Weld Fittings (Socket Weld Half Coupling) are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Socket Weld Half Coupling Fittings are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on Socket Weld fittings.
- Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 10204 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
- No minimum quantity order limit. Get Market leading prices on all types of Socket Weld Forged Half Coupling in India.
ASME B16.11 Socket Weld Half Coupling Material & Grades
| Stainless Steel Socket Weld Half Coupling |
|---|
| ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L. |
| Carbon Steel Socket Weld Half Coupling |
| ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70 |
| Alloy Steel Socket Weld Half Coupling |
| ASTM A182: F1, F5, F9, F11, F22, F91 |
| Duplex & Super Duplex Steel Socket Weld Half Coupling |
| ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61. |
| Nickel Alloy Socket Weld Half Coupling |
| ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3) |
ASME B16.11 Socket Weld Half Coupling Manufacturing Standards
| ASME Standard | ASME/ANSI B16.11, MSS SP-79, MSS-SP-95, 83, 97 |
|---|---|
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.11 | Socket Weld Fittings, Socket – Welding and Threaded |
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic SS Piping Socket Weld Fittings |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Socket Weld Half Coupling by Size, Class, and Wall Thickness
| Description | Class Designation | ||
| 3000 | 6000 | 9000 | |
| Half Coupling | 1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
Ready Stock of ASME B16.11 Socket Weld Half Coupling in India
| Copper Alloy Steel Socket weld Half Coupling | Nickel Alloy Forged Socket weld Half Coupling |
| Monel Alloy Socket weld Half Coupling Stocks | SS Class 6000 Lbs Socket weld Half Coupling |
| Copper Nickel Forged Socket weld Half Coupling | Hastelloy Forged Socket weld Half Coupling |
| Forged Socket weld Half Coupling | Stainless Steel Socket weld Coupling |
| Duplex Steel Forged Socket weld Coupling | Carbon Steel Socket weld Half Coupling |
| Alloy Steel Socket weld Half Coupling | Super Duplex Steel Socket weld Coupling |
| Inconel Socket weld Half Coupling Manufacturer | Titanium Forged Socket weld Half Coupling |
| Incoloy Socket weld Half Coupling | SS ANSI /ASME B16.11 Socket weld Half Coupling |
| BS3799 Forged Socket weld Half Coupling Suppliers | Class 3000 Lbs SS Forged Socket weld Half Coupling |
| SS ASTM A182 Forged Socket weld Half Coupling | Class 9000 Lbs Socket weld Half Coupling |
ASME B16.11 Socket Weld Half Coupling Applications and Uses
