ASME B16.11 Socket Weld Full Coupling Supplier, Manufacturer in India
Unichem Steel & Alloy Pvt. Ltd. is effectively ranked as the foremost Manufacturer, Exporter, and Supplier of ASME B16.11 Socket Weld Full Coupling. Our offered range of Socket Weld Full Coupling is very demanded within the international markets. Forged Socket Weld Fittings Full Couplings are used only in conjunction with ASME Pipe. We are manufacture Socket Weld Full Coupling as per the BS, DIN, JIS, SAE Standards and also in several sizes, specifications, grades as per the client’s requirements. Socket Weld Full Couplings are forged pipe fittings manufactured in accordance with ASME B16.11 and are wont to join pipes. they’re available full size and with socket weld connection and sometimes it’s manufactured during a combination of the two for special piping applications. due to their convenient use, full pipe couplings are widely utilized in civil construction, industry, agriculture, and other fields. The most manufacturing standards for full pipe couplings are generally GB/T14383, ASME B16.11, BS 3799. Socket Weld Full Couplings has features like Excellent finish, High strength, Long service life, Reasonable prices, Sturdy construction, Robust design.

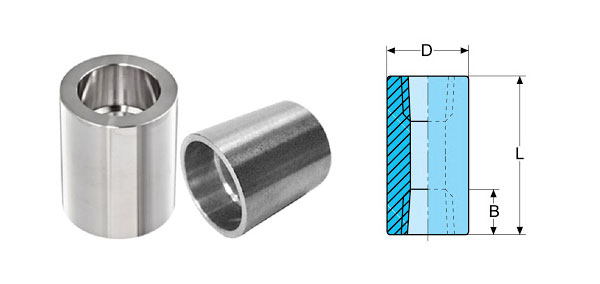

Largest Stockist of ANSI/ASME B16.11 Socket Weld Full Coupling in Mumbai. Socket Weld Full Coupling dimensions
Most Trusted Exporters of ANSI/ASME B16.11, MSS SP-79, MSS-SP-95, 83, 97 Socket Weld Full Coupling in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.
ASME B16.11 Socket Weld Full Coupling Specifications
Specifications
ASME SA182, SB564 / 160 / 472, SB 61/62/151/152, SA105/694/350 / ASTM A182, B564/160/472, B61/62/151/152, A105/A694/A350
Standards / Dimensions
ANSI/ASME B16.11, MSS SP-79, MSS-SP-95, 83, 97
Size & Thickness
1/8″~4″(DN6~DN100)
Socket Weld Pressure Class
2000LBS, 3000LBS, 6000LBS, 9000LBS
Type
Socket Weld
Forms
Full Coupling
ASME B16.11 Socket Weld Full Coupling Dimensions
NPS 1/2 to 4 – 3000 LBS Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
|---|---|---|---|---|---|---|
| B | J | D | C | Coupling E |
||
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
13 | |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
9.5 | |
| 1¼ | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
13 | |
| 1½ | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
13 | |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
19 | |
| 2½ | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
19 | |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
19 | |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
19 | |
NPS 1/2 to 2 – 6000 LBS Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
|---|---|---|---|---|---|---|
| B | J | D | C | Coupling E |
||
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
13 | |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
9.5 | |
| 1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
13 | |
| 1½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
13 | |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
19 | |
Why Purchase From Unichem Steel & Alloy Pvt. Ltd.
- Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ASME B16.11 Socket Weld Full Coupling. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Socket Weld Full Coupling. Socket Weld Full Coupling is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
- Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on Socket Weld Full Coupling Fittings.
- Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing of custom size ANSI B16.11 Socket Weld Full Coupling Forged Fittings with accurate dimensions and uniform wall thickness.
- We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our Socket Weld Full Coupling.
- As leading exporters and suppliers we keep a buffer stock of Socket Weld Full Coupling Pipe Fittings in all grades from ½” NB to 4” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
- Socket Weld Fittings (Socket Weld Full Coupling) are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Socket Weld Full Coupling Fittings are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on Socket Weld fittings.
- Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 10204 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
- No minimum quantity order limit. Get Market leading prices on all types of Socket Weld Forged Full Coupling in India.
ASME B16.11 Socket Weld Full Coupling Material & Grades
| Stainless Steel Socket Weld Full Coupling |
|---|
| ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L. |
| Carbon Steel Socket Weld Full Coupling |
| ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70 |
| Alloy Steel Socket Weld Full Coupling |
| ASTM A182: F1, F5, F9, F11, F22, F91 |
| Duplex & Super Duplex Steel Socket Weld Full Coupling |
| ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61. |
| Nickel Alloy Socket Weld Full Coupling |
| ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3) |
ASME B16.11 Socket Weld Full Coupling Manufacturing Standards
| ASME Standard | ASME/ANSI B16.11, MSS SP-79, MSS-SP-95, 83, 97 |
|---|---|
| DIN Standard | DIN28011, DIN2617, DIN2616, DIN2615, DIN2605 |
| EN Standard | EN10253-2, EN10253-1 |
| ASME B16.11 | Socket Weld Fittings, Socket – Welding and Threaded |
| ASTM A182 – ASME SA182 | Standard Specification for Wrought Austenitic SS Piping Socket Weld Fittings |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Socket Weld Full Coupling by Size, Class, and Wall Thickness
| Description | Class Designation | ||
| 3000 | 6000 | 9000 | |
| Full Coupling | 1/2 – 4 | 1/2 – 2 | 1/2 – 2 |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| 1/2 – 4 | 1/2 – 2 | 1/2 – 2 | |
| Pipe Size by Wall Thickness |
SCH 80 / XS | SCH 160 | XXS |
Ready Stock of ASME B16.11 Socket Weld Full Coupling in India
| Copper Alloy Steel Socket weld Full Coupling | Nickel Alloy Forged Socket weld Full Coupling |
| Monel Alloy Socket weld Full Coupling Stocks | SS Class 6000 Lbs Socket weld Full Coupling |
| Copper Nickel Forged Socket weld Full Coupling | Hastelloy Forged Socket weld Full Coupling |
| Forged Socket weld Full Coupling | Stainless Steel Socket weld Coupling |
| Duplex Steel Forged Socket weld Full Coupling | Carbon Steel Socket weld Full Coupling |
| Alloy Steel Socket weld Full Coupling | Super Duplex Steel Socket weld Coupling |
| Inconel Socket weld Full Coupling Manufacturer | Titanium Forged Socket weld Full Coupling |
| Incoloy Socket weld Full Coupling | SS ANSI /ASME B16.11 Socket weld Full Coupling |
| BS3799 Forged Socket weld Full Coupling Suppliers | Class 3000 Lbs SS Forged Socket weld Full Coupling |
| SS ASTM A182 Forged Socket weld Full Coupling | Class 9000 Lbs Socket weld Full Coupling |
ASME B16.11 Socket Weld Full Coupling Applications and Uses
- Power Plant / Power Generation
- Fertilizers
- Oil & Gas
- Refineries
- Chemical Industry
- Pulp and Paper Industry
- Petrochemicals
- Engineering Project
- Environmental and Water Projects
- Boiler Manufacturers
- Pumps and Valves
- Cement Industries
- Aerospace Industry
- Nuclear Industry
- Construction
- Ship Building Companies
- Thermal Processing
- Pharma Industry
- Off-Shore Oil Drilling Companies
ASME B16.11 Socket Weld Full Coupling Exporter
EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.
ASME B16.11 Socket Weld Full Coupling Supplier
Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.
Contact us to get a quick quote for ASME B16.11 Socket Weld Full Coupling.
