ANSI B16.5 / ASME B16.47 DIN Standard Flange

ASTM B564 Nickel Flanges: Unichem Steel & Alloy Pvt. Ltd. Certified is a highly acclaimed Nickel Slip On Flanges, unichemsteel.com

ANSI B16.5 / ASME B16.47 DIN Standard Flange Supplier, Manufacturer in India

ANSI B16.5 / ASME B16.47 DIN Standard Flange Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is a reliable DIN Standard Flange manufacturers, Supplier, and Exporter in India. These DIN standard flanges are immune to corrosion and abrasion and ensure high durability. Din Flanges are widely utilized in special circumstances with their main advantage being that they will be attached to the pipe without welding. These DIN Flanges is offered in various size, grades, Specification & thickness as per the client’s requirements. These DIN Flanges are utilized in various applications industries. The subset flanges under the DIN standard contains an equivalent sort of flanges within the united states, including the foremost commonly used slip-on flanges, weld neck, flanges, and blind flanges. Adapter flanges are often custom-made to end-user requirements for the mating of American flanges to international ones, however, we find it’s a much more common and simple solution to supply DIN Standard Flanges to mate to existing equipment. The Deutsches Institut für Normung (DIN), the German Institute for Standardization, serves the same function. DIN Flange has a wide reach, and over 30,000 DIN standards provide comprehensive coverage for various products and technologies. DIN is most typically specified in European countries, while ANSI is typically specified in the united states. DIN standards Flange uses metric measurements (mm and bar) to measure the valve and flange sizes and pressures. The DIN 2527 Flanges with the size of this standard might be used at a maximum temperature of 120°C with a working pressure of up to 16 bars. At a higher temperature range of 120°C to 300°C, it should be taken into consideration that the fabric or the din 2527 pn6 flange yield point will become lower.

Largest Stockist of ANSI B16.5 / ASME B16.47 DIN Standard Flanges, DIN Standard Forged Flange, DIN PN40 Flange, DIN PN16 Flange, ANSI B16.5 Class 150 DIN Flange, ASME B16.47 Series A and B DIN Pipe Flanges, MSS SP-44 DIN Flanges in Mumbai.

Most Trusted Exporters of ANSI/ASME B16.5, ANSI/ASME B16.47 DIN Standard Flanges in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.5 DIN Standard Flange Specifications

Specifications

ASTM A182, A 240, A105, A350, A694, A516 / ASME SA182, SB240, SA 105, SA350, SA694

Standards / Dimensions

ANSI B16.47, MSS SP44, ANSI B16.5, Series A & B, ASA, API-605, AWWA, B16.48, BS 10, BS4504, EN-1092, DIN.

Size & Thickness

½” (15 NB) to 48″ (1200NB)

Pressure Class

PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Class

150#, 300#, 400#, 600#, 900#, 1500#, 2500#.

DIN

DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

Flange Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Flanges in the form of Slip On Flange | Weld Neck Flange | Blind Flange | Lap Joint Flange | Threaded Flange | Socket Weld Flange | Plate Flange | Ring Joint Type Face | Spectacle Blind Flange | High Hub Blinds | Orifice Flanges | Reducing Flanges | Square Flanges | Groove & Tongue Flanges | Long Neck Weld Flanges | Spades and Ring Spacers Flange | Weldo Flange | Nipo Flange | Expander Flange at Best Prices in India.

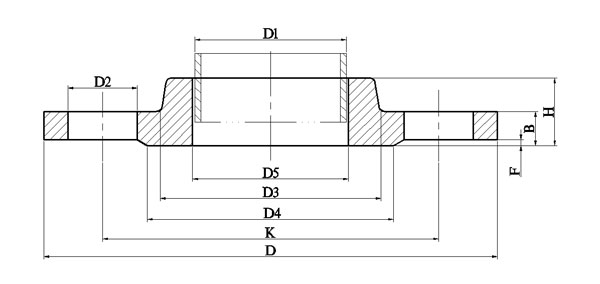

ANSI B16.5 / ASME B16.47 DIN Standard Flange Dimensions

DIN Plate Flanges
(Slip On Flanges)		 DIN Weld Neck Flanges DIN Blind Flanges DIN Threaded Flanges
  • DIN 2573 PN6 Flanges
  • DIN 2576 PN10 Flanges
  • DIN 2502 PN16 Flanges
  • DIN 2503 PN25 Flanges
  • DIN 2543 PN16 Flanges
  • DIN 2631 PN6 Flanges
  • DIN 2632 PN10 Flanges
  • DIN 2633 PN16 Flanges
  • DIN 2634 PN25 Flanges
  • DIN 2635 PN40 Flanges
  • DIN 2527 PN6 Flanges
  • DIN 2527 PN10 Flanges
  • DIN 2527 PN16 Flanges
  • DIN 2527 PN25 Flanges
  • DIN 2527 PN40 Flanges
  • DIN 2565 PN6 Flanges
  • DIN 25

Flange Nominal Diameter Pressure Rating (PN)
**Nominal BSP Pipe Size PN6 PN10 PN16 PN25 PN40
DN 10 75 90 90 90 90 O.D.
3/8″ 50 60 60 60 60 PCD (bolt circle)
4 x 11 4 x 14 4 x 14 4 x 14 4 x 14 # of holes x diam. of holes
DN 15 80 95 95 95 95 O.D.
1/2″ 55 65 65 65 65 PCD (bolt circle)
4 x 11 4 x 14 4 x 14 4 x 14 4 x 14 # of holes x diam. of holes
DN 20 90 105 105 105 105 O.D.
3/4″ 65 75 75 75 75 PCD (bolt circle)
4 x 11 4 x 14 4 x 14 4 x 14 4 x 14 # of holes x diam. of holes
DN 25 100 115 115 115 115 O.D.
1″ 75 85 85 85 85 PCD (bolt circle)
4 x 11 4 x 14 4 x 14 4 x 14 4 x 14 # of holes x diam. of holes
DN 32 120 140 140 140 140 O.D.
1 1/4″ 90 100 100 100 100 PCD (bolt circle)
4 x 14 4 x 18 4 x 18 4 x 18 4 x 18 # of holes x diam. of holes
DN 40 130 150 150 150 150 O.D.
1 1/2″ 100 110 110 110 110 PCD (bolt circle)
4 x 14 4 x 18 4 x 18 4 x 18 4 x 18 # of holes x diam. of holes
DN 50 140 165 165 165 165 O.D.
2″ 110 125 125 125 125 PCD (bolt circle)
4 x 14 4 x 18 4 x 18 4 x 18 4 x 18 # of holes x diam. of holes
DN 65 160 185 185 185 185 O.D.
2 1/2″ 130 145 145 145 145 PCD (bolt circle)
4 x 14 4 x 18 4 x 18 8 x 18 8 x 18 # of holes x diam. of holes
DN 80 190 200 200 200 200 O.D.
3″ 150 160 160 160 160 PCD (bolt circle)
4 x 18 8 x 18 8 x 18 8 x 18 8 x 18 # of holes x diam. of holes
DN 100 210 220 220 235 235 O.D.
4″ 170 180 180 190 190 PCD (bolt circle)
4 x 18 8 x 18 8 x 18 8 x 22 8 x 22 # of holes x diam. of holes
DN 125 240 250 250 270 270 O.D.
5″ 200 210 210 220 220 PCD (bolt circle)
8 x 18 8 x 18 8 x 18 8 x 26 8 x 26 # of holes x diam. of holes
DN 150 265 285 285 300 300 O.D.
6″ 225 240 240 250 250 PCD (bolt circle)
8 x 18 8 x 22 8 x 22 8 x 26 8 x 26 # of holes x diam. of holes
DN 175 315 315 330 350 O.D.
7″ 270 270 280 295 PCD (bolt circle)
8 x 22 8 x 22 12 x 26 12 x 30 # of holes x diam. of holes
DN 200 320 340 340 360 375 O.D.
8″ 280 295 295 310 320 PCD (bolt circle)
8 x 18 8 x 22 12 x 22 12 x 26 12 x 30 # of holes x diam. of holes
DN 250 375 395 405 425 450 O.D.
10″ 335 350 355 370 385 PCD (bolt circle)
12 x 18 12 x 22 12 x 26 12 x 30 12 x 33 # of holes x diam. of holes
DN 300 440 445 460 485 515 O.D.
12″ 395 400 410 430 450 PCD (bolt circle)
12 x 22 12 x 22 12 x 26 16 x 30 16 x 33 # of holes x diam. of holes
DN 350 490 505 520 555 580 O.D.
14″ 445 460 470 490 510 PCD (bolt circle)
12 x 22 16 x 22 16 x 26 16 x 33 16 x 36 # of holes x diam. of holes
DN 400 540 565 580 620 660 O.D.
16″ 495 515 525 550 585 PCD (bolt circle)
16 x 22 16 x 26 16 x 30 16 x 36 16 x 39 # of holes x diam. of holes
DN 500 645 670 715 730 755 O.D.
20″ 600 620 650 660 670 PCD (bolt circle)
20 x 22 20 x 26 20 x 33 20 x 36 20 x 42 # of holes x diam. of holes
DN 600 755 780 840 845 O.D.
24″ 705 725 770 770 PCD (bolt circle)
20 x 24 20 x 27 20 x 33 20 x 36 # of holes x diam. of holes

DIN 2573 PN6 Flange Dimensions

Germany standard flange DIN 2573 for soldering or welding Nominall Pressure 6
Flansche, glatt zum löten oder schweißen DIN 2573 Nenndruck 6
Brides plates a souder DIN 2573 pression nominale 6
Pipe Flange Screws Weight
(7,85 Kg/dm3)
Rated
Diameter		 d1 d5 D b c k Holes Thread d2 Kg
ISO Series 1 DIN Series 2
15 – 20 21 80 12 5 55 4 M 10 11 0,41
21,3 – 22
20 – 25 26 90 14 5 65 4 M 10 11 0,60
26,9 – 27,6
25 – 30 31 100 14 5 75 4 M 10 11 0,74
33,7 – 34,4
32 – 38 39 120 16 5 90 4 M 12 14 1,19
42,4 – 43,1
40 – 44,5 45,5 130 16 5 100 4 M 12 14 1,39
48,3 – 49
50 – 57 58,1 140 16 6 110 4 M 12 14 1,53
60,3 – 61,1
65 76,1 – 77,1 160 16 6 130 4 M 12 14 1,89
80 88,9 – 90,3 190 18 7 150 4 M 16 18 2,98
100 – 108 109,6 210 18 7 170 4 M 16 18 3,46
114,3 – 115,9
125 – 133 134,8 240 20 7 200 8 M 16 18 4,60
139,7 – 141,6
150 – 159 161,1 265 20 7 225 8 M 16 18 5,22
168,3 – 170,5
200 219,1 – 221,8 320 22 7 280 8 M 16 18 7,15
250 – 267 270,2 375 24 7 335 12 M 16 18 9,61
273 – 276,2
300 323,9 – 327,6 440 24 7 395 12 M 20 22 12,60
350 355,6 – 359,7 490 26 7 445 12 M 20 22 15,60
– 368 372,2
400 406,4 – 411 540 28 7 495 16 M 20 22 18,40
– 419 423,7
(450)* 457 – 462,5 595 30 7 550 16 M 20 22 21,40
500 508 – 531,6 645 30 7 600 20 M 20 22 24,60

DIN 2631 PN6 WNRF Flange Dimensions

Germany standard flange DIN 2631 welding neck flanges; nominal pressure 6
Vorschweißflansche DIN 2631 Nenndruck 6
Brides à souder à collerette DIN 2631: pression nominale 6
Pipe Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
Rated d1 D b k h1 d3 s r h2 d4 f Holes Thread d2 Kg
Diameter ISO Series DIN Series
15 – 20 80 12 55 30 28 2 4 6 40 2 4 M 10 11 0,392
21,3 – 30
20 – 25 90 14 65 32 35 2,3 4 6 50 2 4 M 10 11 0,592
26,9 – 38
25 – 30 100 14 75 35 40 2,6 4 6 60 2 4 M 10 11 0,747
33,7 – 42
32 – 38 120 14 90 35 50 2,6 6 6 70 2 4 M 12 14 1,05
42,4 – 55
40 – 44,5 130 14 100 38 58 2,6 6 7 80 3 4 M 12 14 1,18
48,3 – 62
50 – 57 140 14 110 38 70 2,9 6 8 90 3 4 M 12 14 1,34
60,3 – 74
65 76,1 – 160 14 130 38 88 2,9 6 9 110 3 4 M 12 14 1,67
80 88,9 – 190 16 150 42 102 3,2 8 10 128 3 4 M 16 18 2,71
100 – 108 210 16 170 45 122 3,6 8 10 148 3 4 M 16 18 3,24
114,3 130
125 – 133 240 18 200 48 148 4 8 10 178 3 8 M 16 18 4,49
139,7 – 155
150 – 159 265 18 225 48 172 4,5 10 12 202 3 8 M 16 18 5,15
168,3 – 184
200 219,1 – 320 20 280 55 236 5,9 10 15 258 3 8 M 16 18 7,78
250 – 267 375 22 335 60 282 6,3 12 15 312 3 12 M 16 18 10,8
273 – 290
300 323,9 – 440 22 395 62 342 7,1 15 15 365 4 12 M 20 22 14
350 355,6 – 490 22 445 62 385 7,1 12 15 415 4 12 M 20 22 18,5
– 368 16,7
400 406,4 – 540 22 495 65 438 7,1 12 15 465 4 16 M 20 22 21,2
– 419 19
500 508 – 645 24 600 68 538 7,1 12 15 570 4 20 M 20 22 28,6
600 610 – 755 24 705 70 640 7,1 12 16 670 5 20 M 24 26 31,5
700 711 – 860 24 810 70 740 7,1 12 16 775 5 24 M 24 26 37,4
800 813 – 975 24 920 70 842 7,1 12 16 880 5 24 M 27 30 46,1
900 914 – 1075 26 1020 70 942 7,1 12 16 980 5 24 M 27 30 55,6
1000 1016 – 1175 26 1120 70 1045 7,1 16 16 1080 5 28 M 27 30 61,9

DIN 2565/DIN 2566 Threaded Flange Dimensions

DIN 2565 PN 6 THREADED FLANGE
Rated
Diameter		   Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
d1 Thread D b k h1 d3 d4 f Holes Thread d2 Kg
15 21,3 R 1/2 80 12 55 20 30 40 2 4 M 10 11 0,373
20 26,9 R 3/4 90 14 65 24 40 50 2 4 M 10 11 0,59
25 33,7 R 1 100 14 75 24 50 60 2 4 M 10 11 0,743
32 42,4 R 1 1/4 120 14 90 26 60 70 2 4 M 12 14 1,05
40 48,3 R 1 1/2 130 14 100 26 70 80 3 4 M 12 14 1,2
50 60,3 R 2 140 14 110 28 80 90 3 4 M 12 14 1,37
65 76,1 R 2 1/2 160 14 130 32 100 110 3 4 M 12 14 1,92
80 88,9 R 3 190 16 150 34 110 128 3 4 M 16 18 2,82
100 114,3 R 4 210 16 170 38 130 148 3 4 M 16 18 3,19
125 139,7 R 5 240 18 200 40 160 178 3 8 M 16 18 4,47
150 165,1 R 6 265 18 225 44 185 202 3 8 M 16 18 5,3

DIN 2565/DIN 2566 Threaded Flange Dimensions

DIN 2565 PN 6 THREADED FLANGE
Rated
Diameter		   Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
d1 Thread D b k h1 d3 d4 f Holes Thread d2 Kg
15 21,3 R 1/2 80 12 55 20 30 40 2 4 M 10 11 0,373
20 26,9 R 3/4 90 14 65 24 40 50 2 4 M 10 11 0,59
25 33,7 R 1 100 14 75 24 50 60 2 4 M 10 11 0,743
32 42,4 R 1 1/4 120 14 90 26 60 70 2 4 M 12 14 1,05
40 48,3 R 1 1/2 130 14 100 26 70 80 3 4 M 12 14 1,2
50 60,3 R 2 140 14 110 28 80 90 3 4 M 12 14 1,37
65 76,1 R 2 1/2 160 14 130 32 100 110 3 4 M 12 14 1,92
80 88,9 R 3 190 16 150 34 110 128 3 4 M 16 18 2,82
100 114,3 R 4 210 16 170 38 130 148 3 4 M 16 18 3,19
125 139,7 R 5 240 18 200 40 160 178 3 8 M 16 18 4,47
150 165,1 R 6 265 18 225 44 185 202 3 8 M 16 18 5,3
DIN 2566 PN16 THREADED FLANGE
Rated
Diameter		   Flange Neck Raised face Screws Weight
(7,85 Kg/dm3)
d1 Thread D b k h1 d3 d4 f Holes Thread d2 Kg
15 21,3 R 1/2 95 14 65 20 35 45 2 4 M 12 14 0,613
20 26,9 R 3/4 105 16 75 24 45 58 2 4 M 12 14 0,91
25 33,7 R 1 115 16 85 24 52 68 2 4 M 12 14 1,1
32 42,4 R 1 1/4 140 16 100 26 60 78 2 4 M 16 18 1,6
40 48,3 R 1 1/2 150 16 110 26 70 88 3 4 M 16 18 1,78
50 60,3 R 2 165 18 125 28 85 102 3 4 M 16 18 2,43
65 76,1 R 2 1/2 185 18 145 32 105 122 3 4 M 16 18 3,18
80 88,9 R 3 200 20 160 34 118 138 3 8 M 16 18 4,12
100 114,3 R 4 220 20 180 38 140 158 3 8 M 16 18 4,47
125 139,7 R 5 250 22 210 40 168 188 3 8 M 16 18 6,13
150 165,1 R 6 285 22 240 44 195 212 3 8 M 20 22 7,92

DIN 2527 Blind Flange Dimensions

Germany standard flange DIN 2527 Blind flange Nominal Pressure 6 to 100
Blindflansche Nenndruck 6 bis 100
Brides plaines, pressions nominales 6 à 100
DIN 2527 PN6 BLIND FLANGE
Rated
Diameter		 Flange Screws Weight
(7,85 Kg/dm3)
D b k Number Thread d2 Shape B
Kg
15 80 12 55 4 M 10 11 0.44
20 90 14 65 0.66
25 100 14 75 0.83
32 120 14 90 M 12 14 1.18
40 130 14 100 1.39
50 140 14 110 1.63
65 160 14 130 2.15
80 190 16 150 M 16 18 3.44
100 210 16 170 4.22
125 240 18 200 8 6.11
150 265 18 225 7.51
200 320 20 280 12.31
250 375 22 335 12 18.54
300 440 22 395 M 20 22 25.46
350 490 22 445 31.77
400 540 22 495 16 38.49
500 645 24 600 20 60.10

DIN 2527 PN10 BLIND FLANGE
Rated
Diameter		 Flange Screws Weight
(7,85 Kg/dm3)
D b k Number Thread d2 Shape B
Kg
15 95 14 65 4 M 12 14 0,72
20 105 16 75 1,01
25 115 16 85 1,23
32 140 16 100 M 16 18 1,8
40 150 16 110 2,09
50 165 18 125 2,88
65 185 18 145 3,66
80 200 20 160 4,77
100 220 20 180 8 5,65
125 250 22 210 8,42
150 285 22 240 M 20 22 10,4
200 340 24 295 16,5
250 395 26 350 12 24
300 445 26 400 30,9
350 505 26 460 16 40,6
400 565 26 515 M 24 26 49,4
500 670 28 620 20 75

DIN 2527 PN16 BLIND FLANGE
Rated
Diameter		 Flange Screws Weight
(7,85 Kg/dm3)
D b k Number Thread d2 Shape B
Kg
15 95 14 65 4 M 12 14 0,72
20 105 16 75 1,01
25 115 16 85 1,23
32 140 16 100 M 16 18 1,8
40 150 16 110 2,09
50 165 18 125 2,88
65 185 18 145 3,66
80 200 20 160 8 4,77
100 220 20 180 5,65
125 250 22 210 8,42
150 285 22 240 M 20 22 10,4
200 340 24 295 12 16,1
250 405 26 355 M 24 26 24,9
300 460 28 410 35,1
350 520 30 470 16 47,8
400 580 32 525 M 27 30 63,5
500 715 36 650 20 M 30 33 102

DIN 2642 PN10 Flange Dimensions

Germany standard flange DIN 2642 lapped flange; nominal pressure 10
Lose Flansche Vorschweißbördel Glatte Bunde DIN 2642 Nenndruck 10
Brides tournantes: pression nominale 10
Pipe Flange Screws Weight
(7,85 Kg/dm3)
Rated
Diameter		 d1 D d6 b k e Holes Thread d2 Kg
ISO
Series 1		 DIN
Series 2
15 – 20 95 22 14 65 3 4 M 12 14 0,689
21,3 – 24
20 – 25 105 28 14 75 3 4 M 12 14 0,806
26,9 – 30
25 – 30 115 33 16 85 4 4 M 12 14 1,11
33,7 – 36
32 – 38 140 42 16 100 4 4 M 16 18 1,64
42,4 – 46
40 – 44,5 150 50 16 110 4 4 M 16 18 1,86
48,3 – 54
50 – 57 165 62 16 125 5 4 M 16 18 2,2
60,3 – 65
65 76,1 – 185 81 16 145 5 4 M 16 18 2,62
80 88,9 – 200 94 18 160 5 8 M 16 18 3,32
100 – 108 220 113 18 180 5 8 M 16 18 3,67
114,3 – 119
125 – 133 250 138 18 210 5 8 M 16 18 4,54
139,7 – 145
150 – 159 285 164 18 240 5 8 M 20 22 5,6
168,3 – 173
200 219,1 – 340 225 20 295 5 8 M 20 22 7,46
250 – 267 395 273 22 350 5 12 M 20 22 10,3
273 – 279
300 323,9 – 445 329 26 400 5 12 M 20 22 14
350 355,6 – 505 362 28 460 6 16 M 20 22 18,5
– 368 374
400 406,4 – 565 413 32 515 6 16 M 24 26 25
– 419 426
(450) 457 – 615 467 38 565 6 20 M 24 26 30,6
500 508 – 670 517 38 620 6 20 M 24 26 37
600 610 – 780 618 44 725 7 20 M 27 30 56,3
700 711 – 895 721 50 840 7 24 M 27 30 80,4
800 813 – 1015 824 56 950 7 24 M 30 33 113,2

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ANSI/ASME B16.5 DIN Flanges. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality DIN Standard Flanges. SORF Flanges is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on ANSI 16.47 DIN Standard Flanges.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing custom size ANSI/ASME B16.47 DIN Standard Flanges with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our EN 1092-1 DIN Standard Flange, MSS SP-44 DIN Standard Flanges, ISO Standard DIN Standard Flanges.
  • As leading exporters and suppliers we keep a buffer stock of ASME B16.5 DIN Standard Flanges in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • ANSI/ASME B16.5 Flanges, ANSI/ASME B16.47 DIN Standard Flanges are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All DIN Standard Pipe Flanges are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on DIN Standard Flanges.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 1092 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Industrial DIN Standard Flanges in India.

ASME B16.5 DIN Standard Flanges Material & Grades

Stainless Steel DIN Standard Flange
ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel DIN Standard Flange
ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70
Alloy Steel DIN Standard Flange
ASTM A182: F1, F5, F9, F11, F22, F91
Duplex & Super Duplex Steel DIN Standard Flange
ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61.
Nickel Alloy DIN Standard Flange
ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

ASME B16.5 DIN Standard Flanges Manufacturing Standards

ASME Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, UNI 2277/2278,, JIS, SABS1123, GOST-12820
DIN Standard DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
EN Standard EN1092
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Pipe Flanges
MSS SP-44 Pipe Flange

DIN Standard Flanges Type, Size, and Pressure Class

Specification Pressure Class Size Range
ASME/ANSI B16.5 150 to 2500LBS
150 to 1500LBS		 26“ to 60″
26“ to 48″
ASME/ANSI B16.36 300 To 2500LBS 1″ to 12″
ASME/ANSI B16.47 75 to 300LBS
400, 600LBS
900LBS		 1/2“ to 12″
26“ to 60″
26“ to 48″
BS 10 TABLE-A, D, E, F, H, J, K, R, S, T 15mm to 600mm
EN 1092-1 / DIN / BS 4504 Flanges PN2.5 to PN16
PN25
PN40
PN63
PN100
PN160, PN250
PN320
PN400		 10mm to 1800mm
10mm to 1000mm
10mm to 600mm
10mm to 400mm
10mm to 350mm
10mm to 300mm
10mm to 250mm
10mm to 200mm

Ready Stock of ASME B16.47 DIN Standard Flanges in India

DIN Flange DIN Face Flanges
ANSI B16.5 DIN Flanges DIN Flange Dimensions
DIN DIN Flanges ANSI B16.5 Class 150 DIN Flanges
Stainless Steel DIN Flanges SS DIN Flange
DIN Flanges Dealer ASME B16.47 Series A and B DIN Flanges
ANSI B16.5 class 150 DIN Flange ANSI 150 DIN Flange
Carbon Steel DIN Flange High Quality DIN Flanges
ASTM A182 Stainless Steel DIN Flange Duplex Steel DIN Flange
Super Duplex Steel DIN Flange Copper Nickel DIN Pipe Flanges
High Nickel Alloy DIN Flanges Hastelloy DIN Flanges
Titanium ASME B16.47 Series A and B DIN Flanges Inconel DIN Flanges

ANSI B16.5 DIN Standard Flange Dimensions Tolerance

Outside Diameter:

≤ 24 = 1.6 mm | > 24 = ± 3.2 mm

Inside Diameter:

not applicable

Diameter of Contact Face:

1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm

Outside Diameter of Hub:

≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm

Diameter of Counterbore:

not applicable

Drilling:

Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mmEccentricity of Bolt Circle with Respect to Facing≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.

Thickness:

≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0

Length thru Hub:

≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

ASME B16.47 DIN Standard Flanges Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies

ANSI/ASME B16.5 DIN Standard Flange Exporter

EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.

ANSI/ASME B16.47 DIN Standard Flange Supplier

Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

Contact us to get a quick quote for ANSI B16.5 / ASME B16.47 DIN Standard Flanges.

WE ARE OFFERING DIN STANDARD FLANGES AS PER ISO, DIN, JIS OR ANSI STANDARD.

Request a Quote —>

Exit mobile version
