AWWA Flange Standard

Share
by Unichem Steel

AWWA Flange Standard Supplier, Manufacturer in India

AWWA Flange Standard Supplier, Manufacturer

AWWA Flange Standards differ from ANSI (American National Standards Institute) and ASME (American Society of Mechanical Engineers) certifications in a sort way, the foremost important being their specificity, AWWA standard evaluates properties that particularly affect potable water use, as against broader industrial flange applications. Our company provides an array of AWWA flanges to satisfy your application’s specifications. The American Water Works Association, formed in 1881, was developed to identify and unify major requirements for the waterworks system. The international association serves non-profit, educational, and scientific roles to boost and support water quality and provide around the world. Members of AWWA include water treatment plant management and operations teams, water utility organizations, scientists and environmentalists, regulators, academics, and researchers within the fields of water systems and public health. This invaluable reference is now recognized globally as a key source for scientific and management insight into the water system. AWWA C207 doesn’t require a particular grade of steel, so long because the flange meets minimum standards for physical and chemical properties. AWWA Standard Flanges are developed to satisfy light-duty applications, typically requiring performance at or below 300 psi. AWWA Standard Flanges are often a good cost saver over ANSI or ASME forged flanges. These flanges, designed for oil, steam, or chemical applications and their demand for top pressure, are typically costlier and less necessary for low-pressure piping.

Largest Stockist of AWWA Flange Standard, AWWA C207 Flange, AWWA C207 Class E Blind Flange, AWWA C207 Class D Slip-on Flange, AWWA C207 Class E-Hub Flange, AWWA C207 Class B Flanges, AWWA C207 Class F Flanges in Mumbai.

Most Trusted Exporters of AWWA Flange Standards in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

AWWA Flange Standard Specifications

Specifications

ASTM A182, A 240, A105, A350, A694, A516 / ASME SA182, SB240, SA 105, SA350, SA694

Standards / Dimensions

ANSI B16.47, MSS SP44, ANSI B16.5, Series A & B, ASA, API-605, AWWA, B16.48, BS 10, BS4504, EN-1092, DIN.

Size & Thickness

½” (15 NB) to 48″ (1200NB)

Pressure Class

PN6, PN10, PN16, PN25, PN40, PN64 etc.

AWWA Flange Standard Specifications
Flange Class

150#, 300#, 400#, 600#, 900#, 1500#, 2500#.

Forms

AWWA Standard

Flange Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Flanges in the form of Slip On Flange | Weld Neck Flange | Blind Flange | Lap Joint Flange | Threaded Flange | Socket Weld Flange | Plate Flange | Ring Joint Type Face | Spectacle Blind Flange | High Hub Blinds | Orifice Flanges | Reducing Flanges | Square Flanges | Groove & Tongue Flanges | Long Neck Weld Flanges | Spades and Ring Spacers Flange | Weldo Flange | Nipo Flange | Expander Flange at Best Prices in India.

AWWA Flange Standard Dimensions

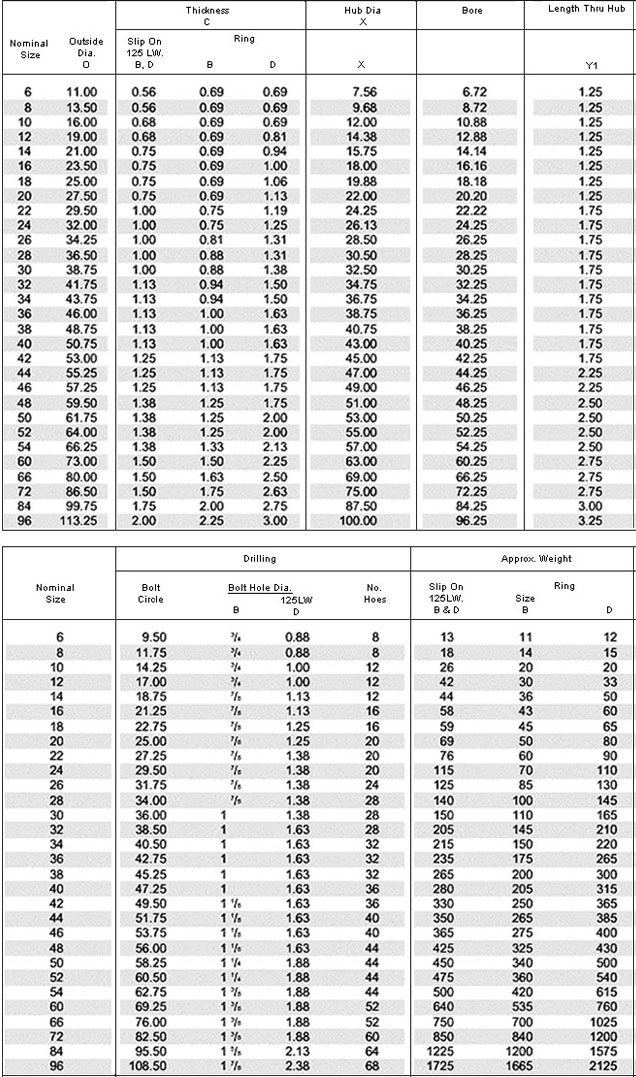

AWWA C207 FLANGE CLASS 125LW CLASS B, D Dimensions

AWWA c207 Flange Standard Dimensions

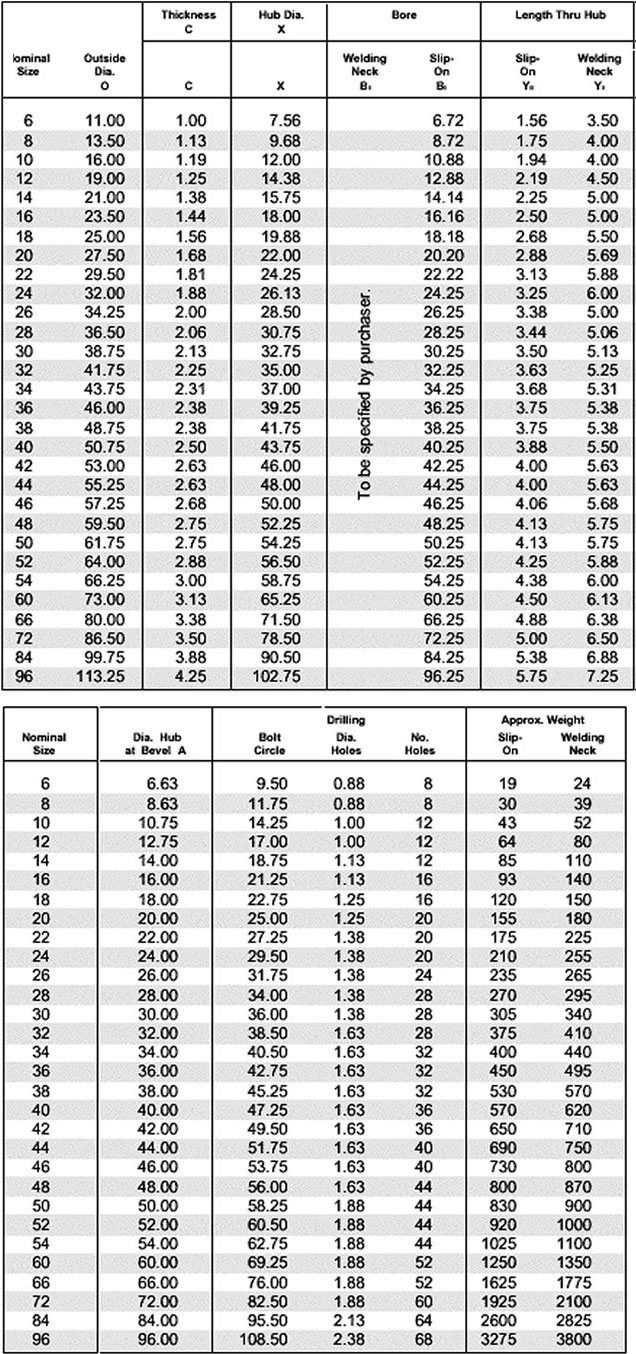

AWWA C207 CLASS 125 LW CLASS E Dimensions

AWWA c207 Flange Standard Dimensions

C207 CLASS B RING FLANGE (86 PSI*) Dimensions

Nom Size   Thickness   Drilling Weight
OD Slip-On Blind Bore Bolt Circle Hole Dia No. Holes Slip-on Blind
A T  T B C
4 9.00 0.625 0.625 4.57 7.50 0.750 8 8 11
5 10.00 0.625 0.625 5.66 8.50 0.875 8 9 14
6 11.00 0.688 0.688 6.72 9.50 0.875 8 11 19
8 13.50 0.688 0.688 8.72 11.75 0.875 8 15 28
10 16.00 0.688 0.688 10.88 14.25 1.000 12 19 39
12 19.00 0.688 0.719 12.88 17.00 1.000 12 28 58
14 21.00 0.688 0.791 14.19 18.75 1.125 12 34 78
16 23.50 0.688 0.892 16.19 21.25 1.125 16 41 110
18 25.00 0.688 0.950 18.19 22.75 1.250 16 41 132
20 27.50 0.688 1.040 20.19 25.00 1.250 20 49 175
22 29.50 0.750 1.132 22.19 27.25 1.375 20 57 219
24 32.00 0.750 1.216 24.19 29.50 1.375 20 67 277
26 34.25 0.812 1.307 26.19 31.75 1.375 24 80 341
28 36.50 0.875 1.398 28.19 34.00 1.375 28 94 414
30 38.75 0.875 1.477 30.19 36.00 1.375 28 105 493
32 41.75 0.936 1.581 32.19 38.50 1.625 28 132 613
34 43.75 0.938 1.661 34.19 40.50 1.625 32 137 707
36 46.00 1.000 1.751 36.19 42.75 1.625 32 161 824
38 48.75 1.000 1.853 38.19 45.25 1.625 32 185 980
40 50.75 1.000 1.933 40.19 47.25 1.625 36 193 1108
42 53.00 1.125 2.023 42.19 49.50 1.625 36 234 1264
44 55.25 1.125 2.114 44.19 51.75 1.625 40 249 1436
46 57.25 1.125 2.194 46.19 53.75 1.625 40 260 1600
48 59.50 1.250 2.285 48.19 56.00 1.625 44 306 1800
50 61.75 1.250 2.377 50.19 58.25 1.875 44 317 2017
52 64.00 1.250 2.468 52.19 60.50 1.875 44 339 2249
54 66.25 1.375 2.559 54.19 62.75 1.875 44 397 2499
60 73.00 1.500 2.820 60.19 69.25 1.875 52 508 3344
66 80.00 1.625 3.092 66.19 76.00 1.875 52 664 4403
72 86.50 1.750 3.353 72.19 82.50 1.875 60 802 5582
78 93.00 2.000 …….. 78.19 89.00 2.125 64 1000 ……..
84 99.75 2.000 …….. 84.19 95.50 2.125 64 1145 ……..
90 106.50 2.250 …….. 90.19 102.00 2.438 68 1404 ……..
96 113.25 2.250 …….. 96.19 108.50 2.438 68 1586 ……..
102 120.00 2.500 …….. 102.19 114.50 2.688 72 1912 ……..
108 126.75 2.500 …….. 108.19 120.75 2.688 72 2136 ……..
114 133.50 2.750 …….. 114.19 126.75 2.938 76 2525 ……..
120 140.25 2.750 …….. 120.19 132.75 2.938 76 2795 ……..
126 147.00 3.000 …….. 126.19 139.25 3.188 80 3252 ……..
132 153.75 3.000 …….. 132.19 145.75 3.188 80 3572 ……..
138 160.50 3.250 …….. 138.19 152.00 3.438 84 4101 ……..
144 167.25 3.250 …….. 144.19 158.25 3.438 84 4475 ……..

C207 CLASS D RING FLANGE (175-150 PSI) Dimensions

Nom Size   Thickness   Drilling Weight
OD Slip-On Blind Bore Bolt Circle Hole Dia No Holes Slip-on Blind
A T  T B C
4 9.00 0.625 0.625 4.57 7.50 0.750 8 8 11
5 10.00 0.625 0.650 5.66 8.50 0.875 8 9 14
6 11.00 0.688 0.693 6.72 9.50 0.875 8 11 19
8 13.50 0.688 0.812 8.72 11.75 0.875 8 15 33
10 16.00 0.688 0.953 10.88 14.25 1.000 12 19 54
12 19.00 0.812 1.117 12.88 17.00 1.000 12 33 90
14 21.00 0.938 1.133 14.19 18.75 1.125 12 47 111
16 23.50 1.000 1.265 16.19 21.25 1.125 16 60 155
18 25.00 1.062 1.331 18.19 22.75 1.250 16 64 185
20 27.50 1.125 1.448 20.19 25.00 1.250 20 79 244
22 29.50 1.188 1.568 22.19 27.25 1.375 20 90 304
24 32.00 1.250 1.661 24.19 29.50 1.375 20 112 378
26 34.25 1.312 1.786 26.19 31.75 1.375 24 129 466
28 36.50 1.312 1.906 28.19 34.00 1.375 28 141 565
30 38.75 1.375 2.008 30.19 36.00 1.375 28 164 671
32 41.75 1.500 2.150 32.19 38.50 1.625 28 211 834
34 43.75 1.500 2.252 34.19 40.50 1.625 32 220 959
36 46.00 1.625 2.370 36.19 42.75 1.625 32 261 1116
38 48.75 1.625 2.506 38.19 45.25 1.625 32 301 1325
40 50.75 1.625 2.609 40.19 47.25 1.625 36 313 1438
42 53.00 1.750 2.729 42.19 49.50 1.625 36 364 1706
44 55.25 1.750 2.849 44.19 51.75 1.625 40 387 1935
46 57.25 1.750 2.952 46.19 53.75 1.625 40 404 2153
48 59.50 1.875 3.072 48.19 56.00 1.625 44 460 2420
50 61.75 2.000 3.196 50.19 58.25 1.875 44 507 2712
52 64.00 2.000 3.315 52.19 60.50 1.875 44 542 3021
54 66.25 2.125 3.435 54.19 62.75 1.875 44 614 3355
60 73.00 2.250 3.779 60.19 69.25 1.875 52 763 4481
66 80.00 2.500 4.136 66.19 76.00 1.875 52 1021 5890
72 86.50 2.625 4.480 72.19 82.50 1.875 60 1203 7458
78 93.00 2.750 …….. 78.19 89.00 2.125 64 1374 ……..
84 99.75 2.875 …….. 84.19 95.50 2.125 64 1646 ……..
90 106.50 3.000 …….. 90.19 102.00 2.438 68 1872 ……..
96 113.25 3.250 …….. 96.19 108.50 2.438 68 2291 ……..
102 120.00 3.250 …….. 102.19 114.50 2.688 72 2485 …….
108 126.75 3.375 …….. 108.19 120.75 2.688 72 2884 ……..
114 133.50 3.500 …….. 114.19 126.75 2.938 76 3214 ……..
120 140.25 3.500 …….. 120.19 132.75 2.938 76 3558 ……..
126 147.00 3.750 …….. 126.19 139.25 3.188 80 4065 ……..
132 153.75 3.875 …….. 132.19 145.75 3.188 80 4614 …….
138 160.50 4.000 …….. 138.19 152.00 3.438 84 5047 ……..
144 167.25 4.125 …….. 144.19 158.25 3.438 84 5680 ……..

C207 CLASS D HUB FLANGE (175-150 PSI*) Dimensions

Nom Size         Drilling
OD Thickness Overall Thickness Dia at Base Bore Bolt  Circle Hole Dia No. Holes Weight
A T
L		 E B C
4 9.00 0.500 0.875 5.312 4.57 7.50 0.750 8 7
5 10.00 0.562 1.250 6.312 5.66 8.50 0.875 8 9
6 11.00 0.562 1.250 7.562 6.72 9.50 0.875 8 11
8 13.50 0.562 1.250 9.688 8.72 11.75 0.875 8 15
10 16.00 0.688 1.250 12.000 10.88 14.25 1.000 12 22
12 19.00 0.688 1.250 14.375 12.88 17.00 1.000 12 33
14 21.00 0.750 1.250 15.750 14.19 18.75 1.125 12 43
16 23.50 0.750 1.250 18.000 16.19 21.25 1.125 16 52
18 25.00 0.750 1.250 19.875 18.19 22.75 1.250 16 52
20 27.50 0.750 1.250 22.000 20.19 25.00 1.250 20 61
22 29.50 1.000 1.750 24.250 22.19 27.25 1.375 20 92
24 32.00 1.000 1.750 26.125 24.19 29.50 1.375 20 105
26 34.25 1.000 1.750 28.500 26.19 31.75 1.375 24 119
28 36.50 1.000 1.750 30.500 28.19 34.00 1.375 28 130
30 38.75 1.000 1.750 32.500 30.19 36.00 1.375 28 144
32 41.75 1.125 1.750 34.750 32.19 38.50 1.625 28 182
34 43.75 1.125 1.750 36.750 34.19 40.50 1.625 32 191
36 46.00 1.125 1.750 38.750 36.19 42.75 1.625 32 207
38 48.75 1.125 1.750 40.750 38.19 45.25 1.625 32 237
40 50.75 1.125 1.750 43.000 40.19 47.25 1.625 36 249
42 53.00 1.250 1.750 45.000 42.19 49.50 1.625 36 287
44 55.25 1.250 2.250 47.000 44.19 51.75 1.625 40 334
46 57.25 1.250 2.250 49.000 46.19 53.75 1.625 40 348
48 59.50 1.375 2.500 51.000 48.19 56.00 1.625 44 407
50 61.75 1.375 2.500 53.000 50.19 58.25 1.875 44 421
52 64.00 1.375 2.500 55.000 52.19 60.50 1.875 44 448
54 66.25 1.375 2.500 57.000 54.19 62.75 1.875 44 475
60 73.00 1.500 2.750 63.000 60.19 69.25 1.875 52 605
66 80.00 1.500 2.750 69.000 66.19 76.00 1.875 52 718
72 86.50 1.500 2.750 75.000 72.19 82.50 1.875 60 803
78 93.00 1.750 3.000 81.250 78.19 89.00 2.125 64 1010
84 99.75 1.750 3.000 87.500 84.19 95.50 2.125 64 1160
90 106.50 2.000 3.250 93.750 90.19 102.00 2.438 68 1430
96 113.25 2.000 3.250 100.000 96.19 108.50 2.438 68 1618

CLASS E STEEL RING FLANGE (275 PSI*) Dimensions

Nom Size   Thickness   Drilling Weight
OD Slip-On Blind Bore Bolt  Circle Hole  Dia No. Holes Slip-on Blind
A T  T B C
4 9.00 1.125 1.125 4.57 7.50 0.750 8 14 20
5 10.00 1.188 1.188 5.66 8.50 0.875 8 16 26
6 11.00 1.313 1.313 6.72 9.50 0.875 8 20 35
8 13.50 1.500 1.500 8.72 11.75 0.875 8 33 61
10 16.00 1.563 1.563 10.88 14.25 1.000 12 44 89
12 19.00 1.750 1.750 12.88 17.00 1.000 12 71 141
14 21.00 1.875 1.875 14.19 18.75 1.125 12 94 184
16 23.50 2.000 2.000 16.19 21.25 1.125 16 120 246
18 25.00 2.125 2.125 18.19 22.75 1.250 16 127 296
20 27.50 2.375 2.375 20.19 25.00 1.250 20 168 400
22 29.50 2.500 2.500 22.19 27.25 1.375 20 189 484
24 32.00 2.625 2.625 24.19 29.50 1.375 20 234 598
26 34.25 2.750 2.750 26.19 31.75 1.375 24 270 718
28 36.50 2.750 2.750 28.19 34.00 1.375 28 297 815
30 38.75 2.875 2.875 30.19 36.00 1.375 28 344 961
32 41.75 3.000 3.000 32.19 38.50 1.625 28 422 1163
34 43.75 3.000 3.050 34.19 40.50 1.625 32 441 1299
36 46.00 3.125 3.209 36.19 42.75 1.625 32 502 1511
38 48.75 3.125 3.394 38.19 45.25 1.625 32 580 1795
40 50.75 3.250 3.533 40.19 47.25 1.625 36 626 2025
42 53.00 3.375 3.695 42.19 49.50 1.625 36 701 2309
44 55.25 3.375 3.857 44.19 51.75 1.625 40 747 2715
46 57.25 3.438 3.997 46.19 53.75 1.625 40 794 2813
48 59.50 3.500 4.159 48.19 56.00 1.625 44 858 3276
50 61.75 3.500 4.327 50.19 58.25 1.875 44 887 3671
52 64.00 3.625 4.489 52.19 60.50 1.875 44 982 4091
54 66.25 3.750 4.651 54.19 62.75 1.875 44 1083 4542
60 73.00 3.875 5.116 60.19 69.25 1.875 52 1313 6066
66 80.00 4.250 5.601 66.19 76.00 1.875 52 1736 7976
72 86.50 4.375 6.066 72.19 82.50 1.875 60 2005 10099
78 93.00 4.750 …….. 78.19 89.00 2.125 64 2374 ……..
84 99.75 4.750 …….. 84.19 95.50 2.125 64 2719 ……..
90 106.50 5.125 …….. 90.19 102.00 2.438 68 3197 ……..
96 113.25 5.125 …….. 96.19 108.50 2.438 68 3613 ……..
102 120.00 5.500 …….. 102.19 114.50 2.688 72 4206 ……..
108 126.75 5.500 …….. 108.19 120.75 2.688 72 4700 ……..
114 133.50 5.875 …….. 114.19 126.75 2.938 76 5395 ……..
120 140.25 5.875 …….. 120.19 132.75 2.938 76 5972 ……..
126 147.00 6.250 …….. 126.19 139.25 3.188 80 6775 ……..
132 153.75 6.250 …….. 132.19 145.75 3.188 80 7442 ……..
138 160.50 6.750 …….. 138.19 152.00 3.438 84 8517 ……..
144 167.25 6.750 …….. 144.19 158.25 3.438 84 9295 ……..

C207 CLASS E HUB FLANGE (275 PSI*) Dimensions

Nom Size         Drilling
OD Thickness Overall Thickness Dia at Base Bore Bolt Circle Hole Dia No. Holes Weight
A T  L E B C
4 9.00 0.938 1.312 5.312 4.57 7.50 0.750 8 13
5 10.00 0.938 1.438 6.438 5.66 8.50 0.875 8 14
6 11.00 1.000 1.562 7.562 6.72 9.50 0.875 8 17
8 13.50 1.125 1.750 9.688 8.72 11.75 0.875 8 28
10 16.00 1.188 1.938 12.000 10.88 14.25 1.000 12 37
12 19.00 1.250 2.188 14.375 12.88 17.00 1.000 12 59
14 21.00 1.375 2.250 15.750 14.19 18.75 1.125 12 78
16 23.50 1.438 2.500 18.000 16.19 21.25 1.125 16 101
18 25.00 1.562 2.688 19.875 18.19 22.75 1.250 16 110
20 27.50 1.688 2.875 22.000 20.19 25.00 1.250 20 139
22 29.50 1.812 3.125 24.000 22.19 27.25 1.375 20 162
24 32.00 1.875 3.250 26.125 24.19 29.50 1.375 20 197
26 34.25 2.000 3.375 28.500 26.19 31.75 1.375 24 235
28 36.50 2.062 3.438 30.750 28.19 34.00 1.375 28 269
30 38.75 2.125 3.500 32.750 30.19 36.00 1.375 28 303
32 41.75 2.250 3.625 35.000 32.19 38.50 1.625 28 375
34 43.75 2.312 3.688 37.000 34.19 40.50 1.625 32 401
36 46.00 2.375 3.750 39.250 36.19 42.75 1.625 32 452
38 48.75 2.375 3.750 41.750 38.19 45.25 1.625 32 528
40 50.75 2.500 3.875 43.750 40.19 47.25 1.625 36 573
42 53.00 2.625 4.000 46.000 42.19 49.50 1.625 36 648
44 55.25 2.625 4.000 48.000 44.19 51.75 1.625 40 688
46 57.25 2.688 4.062 50.000 46.19 53.75 1.625 40 733
48 59.50 2.750 4.125 52.250 48.19 56.00 1.625 44 799
50 61.75 2.750 4.125 54.250 50.19 58.25 1.875 44 827
52 64.00 2.875 4.250 56.500 52.19 60.50 1.875 44 922
54 66.25 3.000 4.375 58.750 54.19 62.75 1.875 44 1024
60 73.00 3.125 4.500 65.250 60.19 69.25 1.875 52 1253
66 80.00 3.375 4.875 71.500 66.19 76.00 1.875 52 1623
72 86.50 3.500 5.000 78.500 72.19 82.50 1.875 60 1922
78 93.00 3.875 5.375 84.500 78.19 89.00 2.125 64 2279
84 99.75 3.875 5.375 90.500 84.19 95.50 2.125 64 2586
90 106.50 4.250 5.750 96.750 90.19 102.00 2.438 68 3061
96 113.25 4.250 5.750 102.750 96.19 108.50 2.438 68 3432

C207 CLASS F RING FLANGE (300 PSI*) Dimensions

Nom Size   Thickness   Drilling Weight
OD Slip-On Blind Bore Bolt Circle Hole Dia No. Holes Slip-on Blind
A T  T B C
4 10.00 1.130 1.130 4.57 7.88 0.875 8 18 25
5 11.00 1.210 1.210 5.66 9.25 0.875 8 22 33
6 12.50 1.310 1.310 6.73 10.62 0.875 12 30 46
8 15.00 1.310 1.310 8.73 13.00 1.000 12 40 66
10 17.50 1.500 1.500 10.88 15.25 1.125 16 56 102
12 20.50 1.630 1.630 12.88 17.75 1.250 16 83 152
14 23.00 1.940 1.940 14.19 20.25 1.250 20 128 228
16 25.50 2.140 2.140 16.19 22.50 1.375 20 167 310
18 28.00 2.250 2.250 18.19 24.75 1.375 24 204 392
20 30.50 2.330 2.330 20.19 27.00 1.375 24 247 482
22 33.00 2.500 2.500 22.19 29.25 1.375 24 307 606
24 36.00 2.690 2.690 24.19 32.00 1.625 24 388 776
26 38.25 3.000 3.000 26.19 34.50 1.875 28 451 977
28 40.75 3.130 3.130 28.19 37.00 1.875 28 532 1156
30 43.00 3.150 3.166 30.19 39.25 1.875 28 586 1303
32 45.25 3.250 3.332 32.19 41.50 1.875 28 657 1518
34 47.50 3.380 3.475 34.19 43.50 1.875 28 741 1745
36 50.00 3.460 3.671 36.19 46.00 2.125 32 802 2042
38 52.25 3.500 3.815 38.19 48.00 2.125 32 874 2317
40 54.25 3.630 3.982 40.19 50.25 2.125 36 937 2608
42 57.00 3.810 4.171 42.19 52.75 2.125 36 1103 3015
44 59.25 4.000 4.338 44.19 55.00 2.125 36 1237 3388
46 61.50 4.130 4.505 46.19 57.25 2.125 40 1344 3791
48 65.00 4.500 4.781 48.19 60.75 2.125 40 1718 4494

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of AWWA Flange Standards. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality AWWA Flange Standards. AWWA Flange Standards is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on AWWA Flange Standards.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing custom size AWWA Flange Standards with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain the reliability and quality of our AWWA Flange Standard.
  • As leading Exporters and Suppliers we keep a buffer stock of AWWA Flange Standards in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • AWWA Flange Standards are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All API 6A Pipe Flanges are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on AWWA Flange Standards.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 1092 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Industrial AWWA Flange Standards in India.

AWWA Flange Standards Material & Grades

Stainless Steel AWWA Flange Standard
ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel AWWA Flange Standard
ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70
Alloy Steel AWWA Flange Standard
ASTM A182: F1, F5, F9, F11, F22, F91
Duplex & Super Duplex Steel AWWA Flange Standard
ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61.
Nickel Alloy AWWA Flange Standard
ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

AWWA Flange Standards Type, Size, and Pressure Class

Specification Pressure Class Size Range
ASME/ANSI B16.5 150 to 2500LBS
150 to 1500LBS		 26“ to 60″
26“ to 48″
ASME/ANSI B16.36 300 To 2500LBS 1″ to 12″
ASME/ANSI B16.47 75 to 300LBS
400, 600LBS
900LBS		 1/2“ to 12″
26“ to 60″
26“ to 48″
BS 10 TABLE-A, D, E, F, H, J, K, R, S, T 15mm to 600mm
EN 1092-1 / DIN / AWWA Flange Standards PN2.5 to PN16
PN25
PN40
PN63
PN100
PN160, PN250
PN320
PN400		 10mm to 1800mm
10mm to 1000mm
10mm to 600mm
10mm to 400mm
10mm to 350mm
10mm to 300mm
10mm to 250mm
10mm to 200mm

Ready Stock of AWWA Flange Standards in India

AWWA C207 Forged Flanges AWWA C207 High Hub Blinds Flanges
AWWA C207 Blind Flanges AWWA C207 Spectacle Blinds Flanges
AWWA C207 Reducing Flanges AWWA C207 Loose Flanges
AWWA C207 Orifice Flanges AWWA C207 RTJ Flanges
AWWA C207 Socket Weld Flanges AWWA C207 Screwed Flanges
AWWA C207 Slip On Flanges AWWA C207 Weld Neck Flanges
AWWA C207 Flat Flanges AWWA C207 Flange Facing Type & Finish
AWWA C207 Lapped Joint Flanges AWWA C207 SORF Flanges
AWWA C207 SWRF Flanges AWWA C207 Groove & Tongue Flanges
AWWA C207 Square Flanges AWWA C207 Long Neck Weld Flanges
AWWA C207 Threaded Flanges AWWA C207 Spades Ring Spacers Flanges
AWWA C207 Weld Neck Flanges AWWA C207 Ring Type Joint Flanges
AWWA C207 WNRF Flanges AWWA C207 Weldo / Nipo Flanges
AWWA C207 Expander Flanges AWWA C207 Flanges

AWWA Flange Standard Dimensions Tolerance

Outside Diameter:

≤ 24 = 1.6 mm | > 24 = ± 3.2 mm

Inside Diameter:

not applicable

Diameter of Contact Face:

1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm

Outside Diameter of Hub:

≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm

Diameter of Counterbore:

not applicable

Drilling:

Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mmEccentricity of Bolt Circle with Respect to Facing≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.

Thickness:

≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0

Length thru Hub:

≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

AWWA Flange Standards Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies
AWWA Flange Standards Applications and Uses

AWWA Flange Standard Exporter

EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, API 6Ated Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.

AWWA Flange Standard Supplier

Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

Contact us to get a quick quote for AWWA Flanges.

WE ARE OFFERING AWWA FLANGE STANDARDS AS PER ISO, DIN, JIS OR ANSI STANDARD.

Request a Quote —>
