ANSI B16.5 / ASME B16.47 Socket Weld Flange Supplier, Manufacturer in India

ANSI B16.5 / ASME B16.47 Socket Weld Flange Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is recognized as the renowned Manufacturer, Supplier, and Exporter of superior quality Socket Weld Flange. These Socket Weld Flange are designed and fabricated using the best quality material, procured from a number of the trustworthy and authorized vendors of the market. Our Socket Weld Flanges are manufactured by skilled professionals in our sophisticated manufacturing unit in accordance with the international quality standards. Socket welding flange initially designed for high-pressure small diameter piping system. A socket weld flange is typically used on the smaller size of high-pressure pipes. Socket-weld flanges were initially developed to be used on small-size high-pressure piping. Socket-Weld Flanges has a female socket during which the pipe is fitted. Fillet welding is completed from the surface of the pipe. Socket welded flange including RF type and RTJ type, which like other sorts of welding flanges. SWRF Flange has a small portion surrounding the flange bore that protrudes from the face. Gasket seats are placed during this raised area. Socket weld flange static strength is equal to slip-on flange, but its fatigue strength is 50% above the double welded slip-on flange. These Socket Weld Flanges are stringently tested on various parameters of quality under the supervision of skilled professionals to make sure flawlessness and defect-free deliveries. we provide these Socket Weld Flange in varied customized options, as per the client’s requirements.

Largest Stockist of ANSI B16.5 / ASME B16.47 Socket Weld Flanges, SWRF Flange, Socket Weld Forged Flange, DIN Socket Weld Flange, Series A & B SWRF Flanges, MSS Socket Weld Flange, Raised Face Socket Weld Flange, BS10 Socket Weld Flange, AWWA Socket Weld Flange, ISO Socket Weld Flange, UNI Socket Weld Flange, API Socket Weld Flange, GOST Standard Socket Weld Flange in Mumbai.

Most Trusted Exporters of ANSI/ASME B16.5, ANSI/ASME B16.47 Socket Weld Flanges in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.5 Socket Weld Flange Specifications

Specifications

ASTM A182, A 240, A105, A350, A694, A516 / ASME SA182, SB240, SA 105, SA350, SA694

Standards / Dimensions

ANSI B16.47, MSS SP44, ANSI B16.5, Series A & B, ASA, API-605, AWWA, B16.48, BS 10, BS4504, EN-1092, DIN.

Size & Thickness

½” (15 NB) to 48″ (1200NB)

Pressure Class

PN6, PN10, PN16, PN25, PN40, PN64 etc.

ANSI B16.5 / ASME B16.47 Socket Weld Flange Specifications
Flange Class

150#, 300#, 400#, 600#, 900#, 1500#, 2500#.

Forms

SWRF

Flange Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Flanges in the form of Slip On Flange | Weld Neck Flange | Blind Flange | Lap Joint Flange | Threaded Flange | Socket Weld Flange | Plate Flange | Ring Joint Type Face | Spectacle Blind Flange | High Hub Blinds | Orifice Flanges | Reducing Flanges | Square Flanges | Groove & Tongue Flanges | Long Neck Weld Flanges | Spades and Ring Spacers Flange | Weldo Flange | Nipo Flange | Expander Flange at Best Prices in India.

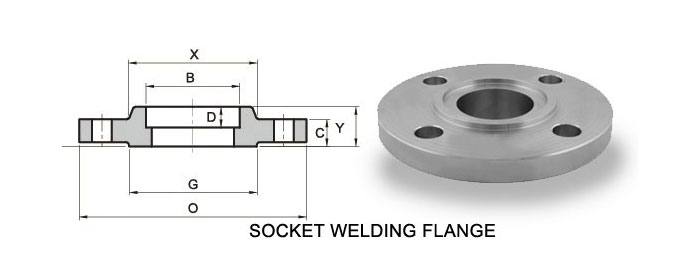

ANSI B16.5 / ASME B16.47 Socket Weld Flange Dimensions

ANSI B16.5 / ASME B16.47 Socket Weld Flange Dimensions

150 Lbs Socket Weld Flanges Dimensions

Nominal Bore  Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1″ 110 14.3 50.80 49 34.5 16 4 15.87 79.4
1/2″ 90 11.2 35.05 30 22.2 14 4 15.87 60.3
3/4″ 100 12.7 42.92 38 27.7 14 4 15.87 69.9
1 1/4″ 115 15.9 63.50 59 43.2 19 4 15.87 88.9
1 1/2″ 125 17.5 73.15 65 49.5 21 4 15.87 98.4
2″ 150 19.1 91.94 78 61.9 24 4 19.05 120.7
2 1/2″ 180 22.3 104.65 90 74.6 27 4 19.05 139.7
3″ 190 23.9 127.00 108 90.7 29 4 19.05 152.4

300 Lbs Socket Weld Flanges Dimensions

Nominal Bore  Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1″ 125 15.9 50.80 54 34.5 25 4 19.05 88.9
1/2″ 95 12.7 35.05 38 22.2 21 4 15.87 66.7
3/4″ 115 14.3 42.92 48 27.7 24 4 19.05 82.6
1 1/4″ 135 17.5 63.50 64 43.2 25 4 19.05 98.4
1 1/2″ 155 19.1 73.15 70 49.5 29 4 22.22 114.3
2″ 165 20.7 91.94 84 61.9 32 8 19.05 127.0
2 1/2″ 190 23.9 104.65 100 74.6 37 8 22.22 149.2
3″ 210 27.0 127.00 117 90.7 41 8 22.22 168.3

600 Lbs Socket Weld Flanges Dimensions

Nominal Bore >Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1″ 125 17.5 50.80 54 34.5 27 4 19.05 88.9
1/2″ 95 14.3 35.05 38 22.2 22 4 15.87 66.7
3/4″ 115 15.9 42.92 48 27.7 25 4 19.05 82.6
1 1/4″ 135 20.7 63.50 64 43.2 29 4 19.05 98.4
1 1/2″ 155 22.3 73.15 70 49.5 32 4 22.22 114.3
2″ 165 25.4 91.94 84 61.9 37 8 19.05 127.0
2 1/2″ 190 28.6 104.65 100 74.6 41 8 22.22 149.2
3″ 210 31.8 127.00 117 90.7 46 8 22.22 168.3

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ANSI/ASME B16.5 Socket Weld Flanges. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Socket Weld Flanges. SWRF Flanges is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on ANSI 16.47 Socket Weld Flanges.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing of custom size ANSI/ASME B16.47 Socket Weld Flanges with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our EN 1092-1 Socket Weld Flanges, MSS SP-44 Socket Weld Flanges, ISO Standard Socket Weld Flanges.
  • As leading exporters and suppliers we keep a buffer stock of ASME B16.5 Socket Weld Flanges in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • ANSI/ASME B16.5 Flanges, ANSI/ASME B16.47 Socket Weld Flanges are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Socket Weld Pipe Flanges are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on Socket Weld Flanges.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 1092 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Industrial Socket Weld Flanges in India.

ASME B16.5 Socket Weld Flanges Material & Grades

Stainless Steel Socket Weld Flange
ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Socket Weld Flange
ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70
Alloy Steel Socket Weld Flange
ASTM A182: F1, F5, F9, F11, F22, F91
Duplex & Super Duplex Steel Socket Weld Flange
ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61.
Nickel Alloy Socket Weld Flange
ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

ASME B16.5 Socket Weld Flanges Manufacturing Standards

ASME Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, UNI 2277/2278,, JIS, SABS1123, GOST-12820
DIN Standard DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
EN Standard EN1092
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Pipe Flanges
MSS SP-44 Pipe Flange

Socket Weld Flanges Type, Size, and Pressure Class

Specification Pressure Class Size Range
ASME/ANSI B16.5 150 to 2500LBS
150 to 1500LBS		 26“ to 60″
26“ to 48″
ASME/ANSI B16.36 300 To 2500LBS 1″ to 12″
ASME/ANSI B16.47 75 to 300LBS
400, 600LBS
900LBS		 1/2“ to 12″
26“ to 60″
26“ to 48″
BS 10 TABLE-A, D, E, F, H, J, K, R, S, T 15mm to 600mm
EN 1092-1 / DIN / BS 4504 Flanges PN2.5 to PN16
PN25
PN40
PN63
PN100
PN160, PN250
PN320
PN400		 10mm to 1800mm
10mm to 1000mm
10mm to 600mm
10mm to 400mm
10mm to 350mm
10mm to 300mm
10mm to 250mm
10mm to 200mm

Ready Stock of ASME B16.47 Socket Weld Flanges in India

Socket Weld Raised Face Flange Raised Faced Socket Weld Flanges
ANSI B16.5 Socket Weld Flanges Socket Weld Flange Dimensions
ASME B16.5 SWRF Flanges ANSI B16.5 Class 150 Socket Weld Flanges
Stainless Steel Socket Weld Flanges SS Socket Weld Flange
Socket Weld Plate Flanges Dealer ASME B16.47 Series A and B SWRF Flanges
ANSI B16.5 class 150 SWRF Flange ANSI 150 Socket Weld Flange
Carbon Steel Socket Weld Flange High Quality SWRF Flanges
ASTM A182 Stainless Steel SWRF Flange Duplex Steel Socket Weld Flange
Super Duplex Steel Socket Weld Forged Flange Copper Nickel Socket Weld Pipe Flanges
High Nickel Alloy SWRF Flanges Hastelloy Flat Faced Socket Weld Flanges
Titanium ASME B16.47 Series A and B SWRF Flanges Inconel Socket Weld Flanges

ANSI B16.5 Socket Weld Flange Dimensions Tolerance

Outside Diameter:

≤ 24 = 1.6 mm | > 24 = ± 3.2 mm

Inside Diameter:

not applicable

Diameter of Contact Face:

1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm

Outside Diameter of Hub:

≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm

Diameter of Counterbore:

not applicable

Drilling:

Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mmEccentricity of Bolt Circle with Respect to Facing≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.

Thickness:

≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0

Length thru Hub:

≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

ASME B16.47 Socket Weld Flanges Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies
ASME B16.47 Socket Weld Flanges Applications and Uses

ANSI/ASME B16.5 Socket Weld Flange Exporter

EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.

ANSI/ASME B16.47 Socket Weld Flange Supplier

Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

Contact us to get a quick quote for ANSI B16.5 / ASME B16.47 Socket Weld Flanges.

WE ARE OFFERING SOCKET WELD FLANGES AS PER ISO, DIN, JIS OR ANSI STANDARD.
