ANSI B16.5 / ASME B16.47 Ring Type Joint Flange Supplier, Manufacturer in India

ANSI B16.5 / ASME B16.47 Ring Type Joint Flange Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is one of the well-known Manufacturer, Suppliers, and Exporters of SS Ring Type Joint Flange in India. We manufacture this RTJ Flange in various grades, sizes, types, thicknesses, and also in customized specifications as per the requirements of our customers at affordable prices. Ring Type Joint Flange uses a metal ring that sits during a hexagonal groove as a gasket to seal the flange pair. Ring Type Joint Flange seal when the bolt is tightened and also gasket is compressed into the groove making a metal to metal seal. RTJ Flanges usually have a raised face with the groove machined into the face of the flanges. The raised face doesn’t function the way to contain the pressure. An RTJ flange may have a raised face with a hoop groove machined into it. RTJ joints are used for high pressures and high temperatures above 427°C (882°F). They feature a machined groove during which a metallic ring joint is fitted. When the bolt is tightened, the metal joint is compressed between the 2 flanges and is deformed so on create a metal-to-metal contact. But this face does not play any role within the sealing capacity of the units. There are two different types of RTJ flange designs octagonal, and oval cross-section. The advantage of the RTJ flange is that the gasket is confined during a groove.

Largest Stockist of ANSI B16.5 / ASME B16.47 Ring Type Joint Flanges, RTJ Flange, Ring Type Joint Forged Flange, DIN Ring Type Joint Flange, Series A & B RTJ Flanges, MSS Ring Type Joint Flange, BS10 Ring Type Joint Flange, AWWA Ring Type Joint Flange, ISO RTJ Flange, UNI Ring Type Joint Flange, API Ring Type Joint Flange, GOST Standard Ring Type Joint Flange in Mumbai.

Most Trusted Exporters of ANSI/ASME B16.5, ANSI/ASME B16.47 Ring Type Joint Flanges in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.5 Ring Type Joint Flange Specifications

Specifications

ASTM A182, A 240, A105, A350, A694, A516 / ASME SA182, SB240, SA 105, SA350, SA694

Standards / Dimensions

ANSI B16.47, MSS SP44, ANSI B16.5, Series A & B, ASA, API-605, AWWA, B16.48, BS 10, BS4504, EN-1092, DIN.

Size & Thickness

½” (15 NB) to 48″ (1200NB)

Pressure Class

PN6, PN10, PN16, PN25, PN40, PN64 etc.

ANSI B16.5 / ASME B16.47 Ring Type Joint Flange Specifications
Flange Class

150#, 300#, 400#, 600#, 900#, 1500#, 2500#.

Forms

RTJ

Flange Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Flanges in the form of Slip-on Flange | Weld Neck Flange | Blind Flange | Lap Joint Flange | Threaded Flange | Socket Weld Flange | Plate Flange | Ring Joint Type Face | Spectacle Blind Flange | High Hub Blinds | Orifice Flanges | Reducing Flanges | Square Flanges | Groove & Tongue Flanges | Long Neck Weld Flanges | Spades and Ring Spacers Flange | Weldo Flange | Nipo Flange | Expander Flange at Best Prices in India.

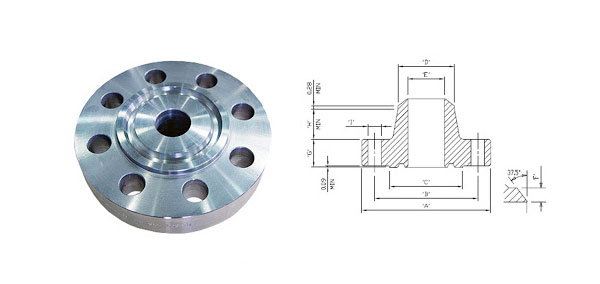

ANSI B16.5 / ASME B16.47 Ring Type Joint Flange Dimensions

ANSI B16.5 / ASME B16.47 Ring Type Joint Flange Dimensions

Class 150 WN RTJ Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 90 9.6 30 21.3 46 N/A N/A 60.3 N/A N/A N/A Refer Note
3/4 20 100 11.2 38 26.7 51 N/A N/A 69.9 N/A N/A N/A
1 25 110 12.7 49 33.4 54 63.5 6.35 79.4 47.63 6.35 8.74
1 1/4 32 115 14.3 59 42.2 56 73 6.35 88.9 57.15 6.35 8.74
1 1/2 40 125 15.9 65 48.3 60 82.5 6.35 98.4 65.07 6.35 8.74
2 50 150 17.5 78 60.3 62 102 6.35 120.7 82.55 6.35 8.74
2 1/2 65 180 20.7 90 73 68 121 6.35 139.7 101.6 6.35 8.74
3 80 190 22.3 108 88.9 68 133 6.35 152.4 114.3 6.35 8.74
3 1/2 90 215 22.3 122 101.6 70 154 6.35 177.8 131.78 6.35 8.74
4 100 230 22.3 135 114.3 75 171 6.35 190.5 149.23 6.35 8.74
5 125 255 22.3 164 141.3 87 194 6.35 215.9 171.45 6.35 8.74
6 150 280 23.9 192 168.3 87 219 6.35 241.3 193.68 6.35 8.74
8 200 345 27 246 219.1 100 273 6.35 298.5 247.65 6.35 8.74
10 250 405 28.6 305 273 100 330 6.35 362 304.8 6.35 8.74
12 300 485 30.2 365 323.8 113 406 6.35 431.8 381 6.35 8.74
14 350 535 33.4 400 355.6 125 425 6.35 476.3 396.88 6.35 8.74
16 400 595 35 457 406.4 125 483 6.35 539.8 454.03 6.35 8.74
18 450 635 38.1 505 457.2 138 546 6.35 577.9 517.53 6.35 8.74
20 500 700 41.3 559 508 143 597 6.35 635 558.8 6.35 8.74
24 600 815 46.1 663 610 151 711 6.35 749.3 673.1 6.35 8.74

Class 300 WN RTJ Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14 Refer Note
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66

Class 400 WN RTJ Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 95 14.3 38 21.3 52 51 5.54 66.7 34.14 5.54 7.14 Refer Note
3/4 20 115 15.9 48 26.7 57 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 17.5 54 33.4 62 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 20.7 64 42.2 67 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 22.3 70 48.3 70 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 25.4 84 60.3 73 108 7.92 127 82.55 7.92 11.9
2 1/2 65 190 28.6 100 73 79 127 7.92 149.2 101.6 7.92 11.9
3 80 210 31.8 117 88.9 83 146 7.92 168.3 123.83 7.92 11.9
3 1/2 90 230 35 133 101.6 86 159 7.92 184.2 131.78 7.92 11.9
4 100 255 35 146 114.3 89 175 7.92 200 149.23 7.92 11.91
5 125 280 38.1 178 141.3 102 210 7.92 235 180.98 7.92 11.91
6 150 320 41.3 206 168.3 103 241 7.92 269.9 211.12 7.92 11.91
8 200 380 47.7 260 219.1 117 302 7.92 330 269.88 7.92 11.91
10 250 445 54 321 273 124 356 7.92 387.4 323.85 7.92 11.91
12 300 520 57.2 375 323.8 137 413 7.92 450.8 381 7.92 11.91
14 350 585 60.4 425 355.6 149 457 7.92 514.4 419.1 7.92 11.91
16 400 650 63.5 483 406.4 152 508 7.92 571.5 469.9 7.92 11.91
18 450 710 66.7 533 457 165 575 7.92 628.6 533.4 7.92 11.91
20 500 775 69.9 587 508 168 635 9.53 685.8 584.2 9.53 13.49
24 600 915 76.2 702 610 175 749 11.13 812.8 692.15 11.13 16.66

Class 600 WN RTJ Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 95 14.3 38 21.3 52 51 5.54 66.7 34.14 5.54 7.14 Refer Note
3/4 20 115 15.9 48 26.7 57 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 17.5 54 33.4 62 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 20.7 64 42.2 67 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 22.3 70 48.3 70 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 25.4 84 60.3 73 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 28.6 100 73 79 127 7.92 149.2 101.6 7.92 11.91
3 80 210 31.8 117 88.9 83 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 35 133 101.6 86 159 7.92 184.2 131.78 7.92 11.91
4 100 275 38.1 152 114.3 102 175 7.92 215.9 149.23 7.92 11.91
5 125 330 44.5 189 141.3 114 210 7.92 266.7 180.98 7.92 11.91
6 150 355 47.7 222 168.3 117 241 7.92 292.1 211.12 7.92 11.91
8 200 420 55.6 273 219.1 133 302 7.92 349.2 269.88 7.92 11.91
10 250 510 63.5 343 273 152 356 7.92 431.8 323.85 7.92 11.91
12 300 560 66.7 400 323.8 156 413 7.92 489 381 7.92 11.91
14 350 605 69.9 432 355.6 165 457 7.92 527 419.1 7.92 11.91
16 400 685 76.2 495 406.4 178 508 7.92 603.2 469.9 7.92 11.91
18 450 745 82.6 546 457 184 575 7.92 654 533.4 7.92 11.91
20 500 815 88.9 610 508 190 635 9.53 723.9 584.2 9.53 13.49
24 600 940 101.6 718 610 203 749 11.13 838.2 692.15 11.13 16.66

Class 900 WN RTJ Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 120 22.3 38 21.3 60 60.5 6.35 82.6 39.67 6.35 8.74 Refer Note
3/4 20 130 25.4 44 26.7 70 66.5 6.35 88.9 44.45 6.35 8.74
1 25 150 28.6 52 33.4 73 71.5 6.35 101.6 50.8 6.35 8.74
1 1/4 32 160 28.6 64 42.2 73 81 6.35 111.1 60.33 6.35 8.74
1 1/2 40 180 31.8 70 48.3 83 92 6.35 123.8 68.27 6.35 8.74
2 50 215 38.1 105 60.3 102 124 7.92 165.1 95.25 7.92 11.91
2 1/2 65 245 41.3 124 73 105 137 7.92 190.5 107.95 7.92 11.91
3 80 240 38.1 127 88.9 102 156 7.92 190.5 123.83 7.92 11.91
4 100 290 44.5 159 114.3 114 181 7.92 235 149.23 7.92 11.91
5 125 350 50.8 190 141.3 127 216 7.92 279.4 180.98 7.92 11.91
6 150 380 55.6 235 168.3 140 241 7.92 317.5 211.12 7.92 11.91
8 200 470 63.5 298 219.1 162 308 7.92 393.7 269.88 7.92 11.91
10 250 545 69.9 368 273 184 362 7.92 469.9 323.85 7.92 11.91
12 300 610 79.4 419 323.8 200 419 7.92 533.4 381 7.92 11.91
14 350 640 85.8 451 355.6 213 467 11.13 558.8 419.1 11.13 16.66
16 400 705 88.9 508 406.4 216 524 11.13 616 469.9 11.13 16.66
18 450 785 101.6 565 457 229 594 12.7 685.8 533.4 12.7 19.84
20 500 855 108 622 508 248 648 12.7 749.3 584.2 12.7 19.84
24 600 1040 139.7 749 610 292 772 15.88 901.7 692.15 15.88 26.97

Class 1500 WN RTJ Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 120 22.3 38 21.3 60 60.5 6.35 82.6 39.67 6.35 8.74 Refer Note
3/4 20 130 25.4 44 26.7 70 66.5 6.35 88.9 44.45 6.35 8.74
1 25 150 28.6 52 33.4 73 71.5 6.35 101.6 50.8 6.35 8.74
1 1/4 32 160 28.6 64 42.2 73 81 6.35 111.1 60.33 6.35 8.74
1 1/2 40 180 31.8 70 48.3 83 92 6.35 123.8 68.27 6.35 8.74
2 50 215 38.1 105 60.3 102 124 7.92 165.1 95.25 7.92 11.91
2 1/2 65 245 41.3 124 73 105 137 7.92 190.5 107.95 7.92 11.91
3 80 265 47.7 133 88.9 117 168 7.92 203.2 136.53 7.92 11.91
4 100 310 54 162 114.3 124 194 7.92 241.3 161.93 7.92 11.91
5 125 375 73.1 197 141.3 156 229 7.92 292.1 193.68 7.92 11.91
6 150 395 82.6 229 168.3 171 248 9.53 317.5 211.14 9.53 13.49
8 200 485 92.1 292 219.1 213 318 11.13 393.7 269.88 11.13 16.66
10 250 585 108 368 273 254 371 11.13 482.6 323.85 11.13 16.66
12 300 675 123.9 451 323.8 283 438 14.27 571.5 381 14.27 23.01
14 350 750 133.4 495 355.6 298 489 15.88 635 419.1 15.88 26.97
16 400 825 146.1 552 406.4 311 546 17.48 704.8 469.9 17.48 30.18
18 450 915 162 597 457 327 613 17.48 774.7 533.4 17.48 30.18
20 500 985 177.8 641 508 356 673 17.48 831.8 584.2 17.48 33.32
24 600 1170 203.2 762 610 406 794 20.62 990.6 692.15 20.62 36.53

Class 2500 WN RTJ Flange Dimensions

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 135 30.2 43 21.3 73 65 6.35 88.9 42.88 6.35 8.74 Refer Note
3/4 20 140 31.8 51 26.7 79 73 6.35 95.2 50.8 6.35 8.74
1 25 160 35 57 33.4 89 82.5 6.35 108 60.33 6.35 8.74
1 1/4 32 185 38.1 73 42.2 95 102 7.92 130.2 72.23 7.92 11.91
1 1/2 40 205 44.5 79 48.3 111 114 7.92 146 82.55 7.92 11.91
2 50 235 50.9 95 60.3 127 133 7.92 171.4 101.6 7.92 11.91
2 1/2 65 265 57.2 114 73 143 149 9.53 196.8 111.13 9.52 13.49
3 80 305 66.7 133 88.9 168 168 9.53 228.6 127 9.52 13.49
4 100 355 76.2 165 114.3 190 203 11.13 273 157.18 11.13 16.66
5 125 420 92.1 203 141.3 229 241 12.7 323.8 190.5 12.7 19.84
6 150 485 108 235 168.3 273 279 12.7 368.3 228.6 12.7 19.84
8 200 550 127 305 219.1 318 340 14.27 438.2 279.4 14.27 23.01
10 250 675 165.1 375 273 419 425 17.48 539.8 342.9 17.48 30.18
12 300 760 184.2 441 323.8 464 495 17.48 619.1 406.4 17.48 33.32

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ANSI/ASME B16.5 Ring Type Joint Flanges. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Ring Type Joint Flanges. RTJ Flanges is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on ANSI 16.47 Ring Type Joint Flanges.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing custom size ANSI/ASME B16.47 Ring Type Joint Flanges with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our EN 1092-1 Ring Type Joint Flange, MSS SP-44 Ring Type Joint Flanges, ISO Standard Ring Type Joint Flanges.
  • As leading exporters and suppliers we keep a buffer stock of ASME B16.5 Ring Type Joint Flanges in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • ANSI/ASME B16.5 Flanges, ANSI/ASME B16.47 Ring Type Joint Flanges are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Ring Type Joint Pipe Flanges are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests, we make custom marking on Ring Type Joint Flanges.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 1092 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Industrial Ring Type Joint Flanges in India.

ASME B16.5 Ring Type Joint Flanges Material & Grades

Stainless Steel Ring Type Joint Flange
ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Ring Type Joint Flange
ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70
Alloy Steel Ring Type Joint Flange
ASTM A182: F1, F5, F9, F11, F22, F91
Duplex & Super Duplex Steel Ring Type Joint Flange
ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61.
Nickel Alloy Ring Type Joint Flange
ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

ASME B16.5 Ring Type Joint Flanges Manufacturing Standards

ASME Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, UNI 2277/2278,, JIS, SABS1123, GOST-12820
DIN Standard DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
EN Standard EN1092
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Pipe Flanges
MSS SP-44 Pipe Flange

Ring Type Joint Flanges Type, Size, and Pressure Class

Specification Pressure Class Size Range
ASME/ANSI B16.5 150 to 2500LBS
150 to 1500LBS		 26“ to 60″
26“ to 48″
ASME/ANSI B16.36 300 To 2500LBS 1″ to 12″
ASME/ANSI B16.47 75 to 300LBS
400, 600LBS
900LBS		 1/2“ to 12″
26“ to 60″
26“ to 48″
BS 10 TABLE-A, D, E, F, H, J, K, R, S, T 15mm to 600mm
EN 1092-1 / DIN / BS 4504 Flanges PN2.5 to PN16
PN25
PN40
PN63
PN100
PN160, PN250
PN320
PN400		 10mm to 1800mm
10mm to 1000mm
10mm to 600mm
10mm to 400mm
10mm to 350mm
10mm to 300mm
10mm to 250mm
10mm to 200mm

Ready Stock of ASME B16.47 Ring Type Joint Flanges in India

Ring Type Joint Raised Face Flange Raised Faced Ring Type Joint Flanges
ANSI B16.5 Ring Type Joint Flanges Ring Type Joint Flange Dimensions
ASME B16.5 RTJ Flanges ANSI B16.5 Class 150 Ring Type Joint Flanges
Stainless Steel Ring Type Joint Flanges SS Ring Type Joint Flange
Ring Type Joint Plate Flanges Dealer ASME B16.47 Series A and B RTJ Flanges
ANSI B16.5 class 150 RTJ Flange ANSI 150 Ring Type Joint Flange
Carbon Steel Ring Type Joint Flange High Quality RTJ Flanges
ASTM A182 Stainless Steel RTJ Flange Duplex Steel Ring Type Joint Flange
Super Duplex Steel Ring Type Joint Forged Flange Copper Nickel Ring Type Joint Pipe Flanges
High Nickel Alloy RTJ Flanges Hastelloy Flat Faced Ring Type Joint Flanges
Titanium ASME B16.47 Series A and B RTJ Flanges Inconel Ring Type Joint Flanges

ANSI B16.5 Ring Type Joint Flange Dimensions Tolerance

Outside Diameter:

≤ 24 = 1.6 mm | > 24 = ± 3.2 mm

Inside Diameter:

not applicable

Diameter of Contact Face:

1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm

Outside Diameter of Hub:

≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm

Diameter of Counterbore:

not applicable

Drilling:

Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mmEccentricity of Bolt Circle with Respect to Facing≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.

Thickness:

≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0

Length thru Hub:

≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

ASME B16.47 Ring Type Joint Flanges Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies
ASME B16.47 Ring Type Joint Flanges Applications and Uses

ANSI/ASME B16.5 Ring Type Joint Flange Exporter

EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.

ANSI/ASME B16.47 Ring Type Joint Flange Supplier

Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

Contact us to get a quick quote for ANSI B16.5 / ASME B16.47 Ring Type Joint Flanges.

WE ARE OFFERING RING TYPE JOINT FLANGES AS PER ISO, DIN, JIS OR ANSI STANDARD.

Request a Quote —>
