ANSI B16.5 / ASME B16.47 Ring Spacer Flange Supplier, Manufacturer in India

ANSI B16.5 / ASME B16.47 Ring Spacer Flange Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is a trusted Manufacturer, Supplier, and Exporter of high-Quality Spades Rings Paddle Flanges. Spacer Flange is machined from one piece of metal that’s cut to match the pipe size, fit between two pipe flanges, and requires an extra gasket when it’s installed. The thickness of the spectacle blind is specified to support the road pressure and pipe size. Spades and Spacers be implemented in systems during which maintenance is usually not needed, or in programs with large pipe dimensions. Based upon the flange dimensions and therefore the pressure class, Spades is of big weight. to prevent unnecessary weight into flange relations typically are going to be selected to not a spectacle blind, however for 2 Individual Pieces. we offer Spacer Ring Flange Class 150 to Class 2500, material in types of steel, low-temperature steel, Stainless Steel. Spacer Ring Flange looks like half Spectacle Blind Flange. Spacer Ring Flange has a bore and Spade Flange without bore, consistent with ANSI B16.48 American Standard. Paddle Spacers are made of forged steel and go with standards. ASME B16.48 Spades & Ring Spacers accommodates the B16.48 standards and classes specify the pressure capacities like the ANSI B16.48 Class 150 Ring Spacers. Get MSS SP-44 Paddle Spacer Flange at a reasonable price.

Largest Stockist of ANSI B16.5 / ASME B16.47 Paddle Spacer Flanges, Spacer Blind Flange, DIN Paddle Spacer Flange, Series A & B Spacer Blind Flanges, MSS Paddle Spacer Flange, BS10 Ring Spacer Flange, AWWA Ring Spacer Flange, ISO Paddle Spacer Flange, UNI Paddle Spacer Flange, API Paddle Spacer Flange, GOST Standard Paddle Spacer Flange in Mumbai.

Most Trusted Exporters of ANSI/ASME B16.5, ANSI/ASME B16.47 Ring Spacer Flanges in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.5 Ring Spacer Flange Specifications

Specifications

ASTM A182, A 240, A105, A350, A694, A516 / ASME SA182, SB240, SA 105, SA350, SA694

Standards / Dimensions

ANSI B16.47, MSS SP44, ANSI B16.5, Series A & B, ASA, API-605, AWWA, B16.48, BS 10, BS4504, EN-1092, DIN.

Size & Thickness

½” (15 NB) to 48″ (1200NB)

Pressure Class

PN6, PN10, PN16, PN25, PN40, PN64 etc.

ANSI B16.5 / ASME B16.47 Ring Spacer Flange Specifications
Flange Class

150#, 300#, 400#, 600#, 900#, 1500#, 2500#.

Forms

Spacer Blind Flange

Flange Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Flanges in the form of Slip On Flange | Weld Neck Flange | Blind Flange | Lap Joint Flange | Threaded Flange | Socket Weld Flange | Plate Flange | Ring Joint Type Face | Spectacle Blind Flange | High Hub Blinds | Orifice Flanges | Reducing Flanges | Square Flanges | Groove & Tongue Flanges | Long Neck Weld Flanges | Spades and Ring Spacers Flange | Weldo Flange | Nipo Flange | Expander Flange at Best Prices in India.

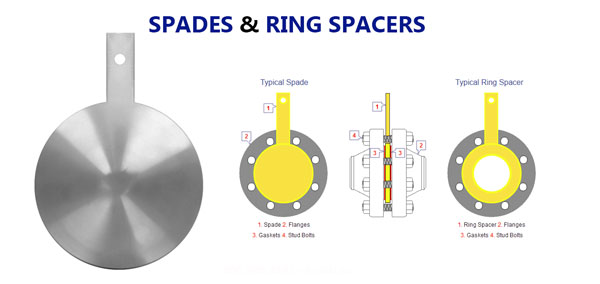

ANSI B16.5 / ASME B16.47 Ring Spacer Flange Dimensions

ANSI B16.5 / ASME B16.47 Ring Spacer Flange Dimensions

150 Lbs Spades and Ring Spacers Flanges Dimensions

NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1 64 27 136 3 32
1/2 45 16 126 3 32
3/4 54 21 131 3 32
1¼ 73 42 145 6.4 32
1½ 83 48 145 6.4 32
2 102 61 155 6.4 32
2½ 107 73 170 6.4 32
3 133 89 170 6.4 32
3½ 159 102 202 9.7 38
4 172 114 202 9.7 38
5 194 141 225 9.7 38
6 219 168 225 12.7 38
8 276 219 267 12.7 38
10 337 273 322 15.7 44
12 406 324 357 19.1 44
14 448 356 378 19.1 44
16 511 406 410 22.4 44
18 546 457 427 25.4 51
20 603 508 455 28.4 51
24 714 610 512 31.8 51

300 Lbs Spades and Ring Spacers Flanges Dimensions

NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1 70 27 139 6.4 32
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1¼ 79 42 150 6.4 32
1½ 92 48 150 6.4 32
2 108 61 158 9.7 32
2½ 127 73 177 9.7 32
3 146 89 177 9.7 32
3½ 162 102 205 12.7 38
4 178 114 205 12.7 38
5 213 141 240 15.7 38
6 248 168 240 15.7 38
8 305 219 281 22.4 38
10 359 273 333 25.4 44
12 419 324 363 28.4 44
14 483 356 395 31.8 44
16 536 406 422 38.1 44
18 594 457 450 41.1 51
20 651 508 480 44.5 51
24 772 610 540 50.8 51

600 Lbs Spades and Ring Spacers Flanges Dimensions

NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1 70 27 139 6.4 32
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1¼ 79 37 150 9.7 32
1½ 92 43 150 9.7 32
2 108 55 158 9.7 32
2½ 127 67 177 12.7 32
3 146 83 177 12.7 32
3½ 159 96 211 15.7 38
4 191 108 211 15.7 38
5 238 135 248 19.1 38
6 264 162 248 22.4 38
8 318 212 288 28.4 38
10 397 265 352 35.1 44
12 454 315 381 41.1 44
14 489 346 398 44.5 44
16 562 397 435 50.8 44
18 610 448 459 53.8 51
20 679 497 493 63.5 51
24 787 597 547 73.2 51

900 Lbs Spades and Ring Spacers Flanges Dimensions

NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1 76 27 142 6.4 32
1/2 60 16 134 6.4 32
3/4 67 21 137 6.4 32
1¼ 86 37 151 9.7 32
1½ 95 43 151 9.7 32
2 140 55 174 12.7 32
2½ 162 67 186 12.7 32
3 165 83 186 15.7 32
4 203 108 217 19.1 38
5 244 135 259 22.4 38
6 286 162 259 25.4 38
8 356 212 307 35.1 38
10 432 265 370 41.1 44
12 495 315 401 47.8 44
14 518 346 412 53.8 44
16 572 397 440 60.5 44
18 635 448 471 66.5 51
20 696 497 501 73.2 51
24 835 597 571 88.9 51

1500 Lbs Spades and Ring Spacers Flanges Dimensions

NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1 76 27 142 9.7 32
1/2 61 16 135 6.4 32
3/4 67 21 137 9.7 32
1¼ 86 35 151 9.7 32
1½ 95 41 151 12.7 32
2 140 53 174 12.7 32
2½ 162 63 190 15.7 32
3 172 78 190 19.1 32
4 206 102 219 22.4 38
5 251 128 256 28.4 38
6 279 154 256 35.1 38
8 349 203 303 41.1 38
10 432 255 370 50.8 44
12 518 303 412 60.5 44
14 575 333 442 66.5 44
16 638 381 472 76.2 44
18 702 429 504 85.9 51
20 752 478 530 95.3 51
24 899 575 603 111.3 51

2500 Lbs Spades and Ring Spacers Flanges Dimensions

NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1 83 27 145 9.7 32
1/2 67 16 137 9.7 32
3/4 73 21 140 9.7 32
1¼ 102 35 161 12.7 32
1½ 114 41 161 15.7 32
2 143 53 175 15.7 32
2½ 165 63 201 19.1 32
3 194 78 201 22.4 32
4 232 102 232 28.4 38
5 276 128 273 35.1 38
6 314 154 273 41.1 38
8 384 198 321 53.8 38
10 473 248 390 66.5 44
12 546 289 427 79.2 44

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ANSI/ASME B16.5 Paddle Spacer Flanges. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Paddle Spacer Flanges. Spacer Blind Flanges is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on ANSI 16.47 Paddle Spacer Flanges.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing custom size ANSI/ASME B16.47 Paddle Spacer Flanges with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our EN 1092-1 Paddle Spacer Flange, MSS SP-44 Paddle Spacer Flanges, ISO Standard Paddle Spacer Flanges.
  • As leading exporters and suppliers we keep a buffer stock of ASME B16.5 Paddle Spacer Flanges in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • ANSI/ASME B16.5 Ring Spacer Flanges, ANSI/ASME B16.47 Paddle Spacer Flanges are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Ring Spacer Pipe Flanges are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on Paddle Spacer Flanges.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 1092 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Industrial Paddle Spacer Flanges in India.

ASME B16.5 Ring Spacer Flanges Material & Grades

Stainless Steel Ring Spacer Flange
ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Ring Spacer Flange
ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70
Alloy Steel Ring Spacer Flange
ASTM A182: F1, F5, F9, F11, F22, F91
Duplex & Super Duplex Steel Ring Spacer Flange
ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61.
Nickel Alloy Ring Spacer Flange
ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

ASME B16.5 Ring Spacer Flanges Manufacturing Standards

ASME Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, UNI 2277/2278,, JIS, SABS1123, GOST-12820
DIN Standard DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
EN Standard EN1092
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Pipe Flanges
MSS SP-44 Pipe Flange

Ring Spacer Flanges Type, Size, and Pressure Class

Specification Pressure Class Size Range
ASME/ANSI B16.5 150 to 2500LBS
150 to 1500LBS		 26“ to 60″
26“ to 48″
ASME/ANSI B16.36 300 To 2500LBS 1″ to 12″
ASME/ANSI B16.47 75 to 300LBS
400, 600LBS
900LBS		 1/2“ to 12″
26“ to 60″
26“ to 48″
BS 10 TABLE-A, D, E, F, H, J, K, R, S, T 15mm to 600mm
EN 1092-1 / DIN / BS 4504 Flanges PN2.5 to PN16
PN25
PN40
PN63
PN100
PN160, PN250
PN320
PN400		 10mm to 1800mm
10mm to 1000mm
10mm to 600mm
10mm to 400mm
10mm to 350mm
10mm to 300mm
10mm to 250mm
10mm to 200mm

Ready Stock of ASME B16.47 Ring Spacer Flanges in India

Ring Spacer Raised Face Flange Raised Faced Paddle Spacer Flanges
ANSI B16.5 Ring Spacer Flanges Ring Spacer Flange Dimensions
ASME B16.5 Spacer Blind Flanges ANSI B16.5 Class 150 Paddle Spacer Flanges
Stainless Steel Ring Spacer Flanges SS Ring Spacer Flange
Ring Spacer Plate Flanges Dealer ASME B16.47 Series A and B Spacer Blind Flanges
ANSI B16.5 class 150 Spacer Blind Flange ANSI 150 Ring Spacer Flange
Carbon Steel Ring Spacer Flange High Quality Spacer Blind Flanges
ASTM A182 Stainless Steel Spacer Blind Flange Duplex Steel Ring Spacer Flange
Super Duplex Steel Ring Spacer Forged Flange Copper Nickel Ring Spacer Pipe Flanges
High Nickel Alloy Spacer Blind Flanges Hastelloy Flat Faced Paddle Spacer Flanges
Titanium ASME B16.47 Series A and B Spacer Blind Flanges Inconel Ring Spacer Flanges

ANSI B16.5 Ring Spacer Flange Dimensions Tolerance

Outside Diameter:

≤ 24 = 1.6 mm | > 24 = ± 3.2 mm

Inside Diameter:

not applicable

Diameter of Contact Face:

1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm

Outside Diameter of Hub:

≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm

Diameter of Counterbore:

not applicable

Drilling:

Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mmEccentricity of Bolt Circle with Respect to Facing≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.

Thickness:

≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0

Length thru Hub:

≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm
