ANSI B16.5 / ASME B16.47 Forged Flange Supplier, Manufacturer in India

ANSI B16.5 / ASME B16.47 Forged Flange Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is a professional company to Manufacturer and Exporter of Forged Flange. We offering a good range of Forged Flanges to esteemed customers that got manufactured and designed via high material. Out of all forged flanges are the foremost sought product in demand due to their durability and top quality. The forged flanges are often within the sort of a plate or ring. the forged flange must cover or close at the end. the forged flanges are often divided into pressure class that permits the flanges to require different pressure rating. the forged flanges got developed using high-grade metal which got completely made rustproof. it’s going to be screwed or welded to the end of the pipes and can be connected easily to the bolts. A gasket got inserted in between two flanges so as to obtain or get a good sealing. we provide a fine grade of forged flanges that are basically within the sort of a ring or disc which got attached so on offer strength and better support. we’ll give you the simplest price and superior-top quality. We are focussing on the category of the fittings that are in representing Forged Flange. they’re designed by using corrosion-free substances and using advanced technology. Our team of experts identifies each and every product to make sure the simplest quality and flawless of those products available at suitable rates and in all materials, grades, and specifications.

Largest Stockist of ANSI B16.5 / ASME B16.47 Forged Flanges, DIN Forged Flange, Series A & B Forged Flanges, MSS Forged Flange, Raised Face Forged Flange, BS10 Forged Flange, AWWA C207 Forged Flange, ISO Forged Flange, UNI Forged Flange, API Forged Flange, GOST Standard Forged Flange in Mumbai.

Most Trusted Exporters of ANSI/ASME B16.5, ANSI/ASME B16.47 Forged Flanges in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.5 Forged Flange Specifications

Specifications

ASTM A182, A 240, A105, A350, A694, A516 / ASME SA182, SB240, SA 105, SA350, SA694

Standards / Dimensions

ANSI B16.47, MSS SP44, ANSI B16.5, Series A & B, ASA, API-605, AWWA, B16.48, BS 10, BS4504, EN-1092, DIN.

Size & Thickness

½” (15 NB) to 48″ (1200NB)

Pressure Class

PN6, PN10, PN16, PN25, PN40, PN64 etc.

ANSI B16.5 / ASME B16.47 Forged Flange Specifications
Flange Class

150#, 300#, 400#, 600#, 900#, 1500#, 2500#.

Forms

Forged

Flange Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Flanges in the form of Slip On Flange | Weld Neck Flange | Blind Flange | Lap Joint Flange | Threaded Flange | Socket Weld Flange | Plate Flange | Ring Joint Type Face | Spectacle Blind Flange | High Hub Blinds | Orifice Flanges | Reducing Flanges | Square Flanges | Groove & Tongue Flanges | Long Neck Weld Flanges | Spades and Ring Spacers Flange | Weldo Flange | Nipo Flange | Expander Flange at Best Prices in India.

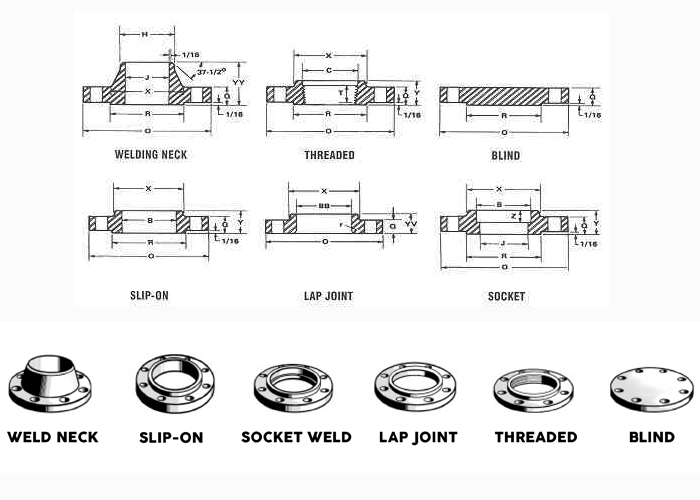

ANSI B16.5 / ASME B16.47 Forged Flange Dimensions

ANSI B16.5 / ASME B16.47 Forged Flange Dimensions

Class 150 Forged Flanges Dimensions

NPS
(in)		 No. of
Studs		 Diameter of Stud
(in)		 Length of Stud
(in)
1 4 1/2 2-3/4
1/2 4 1/2 2-1/2
3/4 4 1/2 2-1/2
1-1/4 4 1/2 2-3/4
1-1/2 4 1/2 3
2 4 5/8 3-1/2
2-1/2 4 5/8 3-3/4
3 4 5/8 3-3/4
3-1/2 8 5/8 3-3/4
4 8 5/8 3-3/4
5 8 3/4 4
6 8 3/4 4-1/4
8 8 3/4 4-1/2
10 12 7/8 4-3/4
12 12 7/8 5
14 12 1 5-1/2
16 16 1 5-1/2
18 16 1-1/8 6
20 20 1-1/8 6-1/2
24 20 1-1/4 7

Class 300 Forged Flanges Dimensions

NPS
(in)		 No. of
Studs		 Diameter of Stud
(in)		 Length of Stud
(in)
1 4 5/8 3-1/4
1/2 4 1/2 2-3/4
3/4 4 5/8 3-1/4
1-1/4 4 5/8 3-1/2
1-1/2 4 3/4 3-3/4
2 8 5/8 3-3/4
2-1/2 8 3/4 4-1/4
3 8 3/4 4-1/2
3-1/2 8 3/4 4-1/2
4 8 3/4 4-3/4
5 8 3/4 5
6 12 3/4 5
8 12 7/8 5-3/4
10 16 1 6-1/2
12 16 1-1/8 7
14 20 1-1/8 7-1/4
16 20 1-1/4 7-3/4
18 24 1-1/4 8
20 24 1-1/4 8-1/4
24 24 1-1/2 9-1/4

Class 400 Forged Flanges Dimensions

NPS
(in)		 No. of
Studs		 Diameter of Stud
(in)		 Length of Stud
(in)
1 4 5/8 3-3/4
1/2 4 1/2 3-1/4
3/4 4 5/8 3-3/4
1-1/4 4 5/8 4
1-1/2 4 3/4 4-1/2
2 8 5/8 4-1/2
2-1/2 8 3/4 5
3 8 3/4 5-1/4
3-1/2 8 7/8 5-3/4
4 8 7/8 5-3/4
5 8 7/8 6
6 12 7/8 6-1/4
8 12 1 7
10 16 1-1/8 7-3/4
12 16 1-1/4 8-1/4
14 20 1-1/4 8-1/2
16 20 1-3/8 9
18 24 1-3/8 9-1/4
20 24 1-1/2 9-3/4
24 24 1-3/4 10-3/4

Class 600 Forged Flanges Dimensions

NPS
(in)		 No. of
Studs		 Diameter of Stud
(in)		 Length of Stud
(in)
1 4 5/8 3-3/4
1/2 4 1/2 3-1/4
3/4 4 5/8 3-3/4
1-1/4 4 5/8 4
1-1/2 4 3/4 4-1/2
2 8 5/8 4-1/2
2-1/2 8 3/4 5
3 8 3/4 5-1/4
3-1/2 8 7/8 5-3/4
4 8 7/8 6
5 8 1 6-3/4
6 12 1 7
8 12 1-1/8 7-3/4
10 16 1-1/4 8-3/4
12 20 1-1/4 9
14 20 1-3/8 9-1/2
16 20 1-1/2 10-1/4
18 20 1-5/8 11
20 24 1-5/8 11-1/2
24 24 1-7/8 13

Class 900 Forged Flanges Dimensions

NPS
(in)		 No. of
Studs		 Diameter of Stud
(in)		 Length of Stud
(in)
1 4 7/8 5-1/4
1/2 4 3/4 4-1/2
3/4 4 3/4 4-3/4
1-1/4 4 7/8 5-1/4
1-1/2 4 1 5-3/4
2 8 7/8 6
2-1/2 8 1 6-1/2
3 8 7/8 6
4 8 1-1/8 7
5 8 1-1/4 7-3/4
6 12 1-1/8 7-3/4
8 12 1-3/8 9
10 16 1-3/8 9-1/2
12 20 1-3/8 10-1/4
14 20 1-1/2 11
16 20 1-5/8 11-1/2
18 20 1-7/8 13
20 20 2 14
24 20 2-1/2 17-1/2

Class 1500 Forged Flanges Dimensions

NPS
(in)		 No. of
Studs		 Diameter of Stud
(in)		 Length of Stud
(in)
1 4 7/8 5-1/4
1/2 4 3/4 4-1/2
3/4 4 3/4 4-3/4
1-1/4 4 7/8 5-1/4
1-1/2 4 1 5-3/4
2 8 7/8 6
2-1/2 8 1 6-1/2
3 8 1-1/8 7-1/4
4 8 1-1/4 8
5 8 1-1/2 10
6 12 1-3/8 10-1/2
8 12 1-5/8 11-3/4
10 12 1-7/8 13-1/2
12 16 2 15
14 16 2-1/4 16-1/2
16 16 2-1/2 18
18 16 2-3/4 19-1/2
20 16 3 21-1/2
24 16 3-1/2 24-1/2

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ANSI/ASME B16.5 Forged Flanges. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Forged Flanges. Forged Flanges is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on ANSI 16.47 Forged Flanges.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing custom size ANSI/ASME B16.47 Forged Flanges with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our EN 1092-1 Forged Flange, MSS SP-44 Forged Flanges, ISO Standard Forged Flanges.
  • As leading exporters and suppliers we keep a buffer stock of ASME B16.5 Forged Flanges in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • ANSI/ASME B16.5 Flanges, ANSI/ASME B16.47 Forged Flanges are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Forged Pipe Flanges are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on Forged Flanges.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 1092 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Industrial Forged Flanges in India.

ASME B16.5 Forged Flanges Material & Grades

Stainless Steel Forged Flange
ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Forged Flange
ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70
Alloy Steel Forged Flange
ASTM A182: F1, F5, F9, F11, F22, F91
Duplex & Super Duplex Steel Forged Flange
ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61.
Nickel Alloy Forged Flange
ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

ASME B16.5 Forged Flanges Manufacturing Standards

ASME Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, UNI 2277/2278,, JIS, SABS1123, GOST-12820
DIN Standard DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
EN Standard EN1092
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Pipe Flanges
MSS SP-44 Pipe Flange

Forged Flanges Type, Size, and Pressure Class

Specification Pressure Class Size Range
ASME/ANSI B16.5 150 to 2500LBS
150 to 1500LBS		 26“ to 60″
26“ to 48″
ASME/ANSI B16.36 300 To 2500LBS 1″ to 12″
ASME/ANSI B16.47 75 to 300LBS
400, 600LBS
900LBS		 1/2“ to 12″
26“ to 60″
26“ to 48″
BS 10 TABLE-A, D, E, F, H, J, K, R, S, T 15mm to 600mm
EN 1092-1 / DIN / BS 4504 Flanges PN2.5 to PN16
PN25
PN40
PN63
PN100
PN160, PN250
PN320
PN400		 10mm to 1800mm
10mm to 1000mm
10mm to 600mm
10mm to 400mm
10mm to 350mm
10mm to 300mm
10mm to 250mm
10mm to 200mm

Ready Stock of ASME B16.47 Forged Flanges in India

Forged Flange Forged Steel Flanges
ANSI B16.5 Forged Flanges Forged Flange Dimensions
ASME B16.5 Forged Flanges ANSI B16.5 Class 150 Forged Flanges
Stainless Steel Forged Flanges SS Forged Flange
Forged Plate Flanges ASME B16.47 Series A and B Forged Flanges
ANSI B16.5 class 150 Forged Flange ANSI 150 Forged Flange
Carbon Steel Forged Flange High Quality Forged Flanges
ASTM A182 Stainless Steel Forged Flange Duplex Steel Forged Flange
Super Duplex Steel Forged Forged Flange Copper Nickel Forged Pipe Flanges
High Nickel Alloy Forged Flanges Hastelloy Flat Faced Forged Flanges
Titanium ASME B16.47 Series A and B Forged Flanges Inconel Forged Flanges
Forged Flange Material A105 Forged Flange
Forged Blind Flange Hot Forged Flange
Forged Nozzle Flange Forged Neck Flange
Forged Steel Flanges To Ansi B16.5 Forged Weld-in Tank Flange
Forged Vessel Flange Forged Welding Flange

ANSI B16.5 Forged Flange Dimensions Tolerance

Outside Diameter:

≤ 24 = 1.6 mm | > 24 = ± 3.2 mm

Inside Diameter:

not applicable

Diameter of Contact Face:

1.6 mm Raised Face = ± 0.8 mm6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm

Outside Diameter of Hub:

≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm

Diameter of Counterbore:

not applicable

Drilling:

Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mmEccentricity of Bolt Circle with Respect to Facing≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.

Thickness:

≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0

Length thru Hub:

≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

ASME B16.47 Forged Flanges Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies
ASME B16.47 Forged Flanges Applications and Uses

ANSI/ASME B16.5 Forged Flange Exporter

EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.

ANSI/ASME B16.47 Forged Flange Supplier

Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

Contact us to get a quick quote for ANSI B16.5 / ASME B16.47 Forged Flanges.

WE ARE OFFERING FORGED FLANGES AS PER ISO, DIN, JIS OR ANSI STANDARD.

Request a Quote —>
