ANSI B16.5 / ASME B16.47 Bleed, Drip & Vent Ring Flange

Share
by Unichem Steel

ANSI B16.5 / ASME B16.47 Bleed, Drip & Vent Ring Flange Supplier, Manufacturer in India

ANSI B16.5 / ASME B16.47 Bleed, Drip & Vent Ring Flange Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is an ISO-certified Bleed Ring Flanges Manufacturer, Supplier, and Exporter in India, that’s a sort of spine that has at least one pipe association masterminded in an outspread way inside round jolt and fit easily between ribs of normal size. It appears that there’s no difference between Drip Ring and Bleed Ring. The vast majority of companies call them bleed ring flange because they permit bleeding pressure into a piping system. A bleed ring flange is a ring section with one and more radial pipe connections designed to suit standard flanges within the bolt circle, using conventional gasket material. The ring flange normally comes with a 1/2 inch socket weld or 3/4 inch tapped for connecting with valve and instrument. The face of the ring flange also can be made to match with any flange type and has different sizes supported the ASME flanges rating of the method piping. Bleed Ring Flange can provide a beneficial way of draining piping, attaching instruments, or perhaps bleeding a valve. they will also be used with a valve and/or blind flange, this permits you to cut back and dispose of the pressure for your valve before you remove the flange. The bleed ring can is available in any material or size and is designed for connecting valves and instruments. The face of the bleed ring is often manufactured to match any flange type. The standard size for a bleed ring is NPS 1 to NPS 24 and ASME Pressure Class 150 through 1500.

Largest Stockist of ANSI B16.5 / ASME B16.47 Bleed, Drip & Vent Ring Flange, DIN Bleed Ring Flat-Faced Flange, Series A & B Bleed Flanges, MSS Bleed, Drip & Vent Ring Flange, Raised Face Bleed Ring Flange, BS10 Bleed Ring Flange, AWWA Drip Ring Flange, ISO Bleed Ring Plate Flange, UNI Bleed, Drip & Vent Ring Flange, API Bleed Ring Flange, GOST Standard Bleed, Drip & Vent Ring Flange in Mumbai.

Most Trusted Exporters of ANSI/ASME B16.5, ANSI/ASME B16.47 Bleed, Drip & Vent Ring Flanges in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.5 Bleed Ring Flange Specifications

Specifications

ASTM A182, A 240, A105, A350, A694, A516 / ASME SA182, SB240, SA 105, SA350, SA694

Standards / Dimensions

ANSI B16.47, MSS SP44, ANSI B16.5, Series A & B, ASA, API-605, AWWA, B16.48, BS 10, BS4504, EN-1092, DIN.

Size & Thickness

½” (15 NB) to 48″ (1200NB)

Pressure Class

PN6, PN10, PN16, PN25, PN40, PN64 etc.

ANSI B16.5 / ASME B16.47 Bleed Ring Flange Specifications
Flange Class

150#, 300#, 400#, 600#, 900#, 1500#, 2500#.

Forms

Bleed, Drip & Vent Ring

Flange Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Flanges in the form of Slip On Flange | Weld Neck Flange | Blind Flange | Lap Joint Flange | Threaded Flange | Socket Weld Flange | Plate Flange | Ring Joint Type Face | Spectacle Blind Flange | High Hub Blinds | Orifice Flanges | Reducing Flanges | Square Flanges | Groove & Tongue Flanges | Long Neck Weld Flanges | Spades and Ring Spacers Flange | Weldo Flange | Nipo Flange | Expander Flange at Best Prices in India.

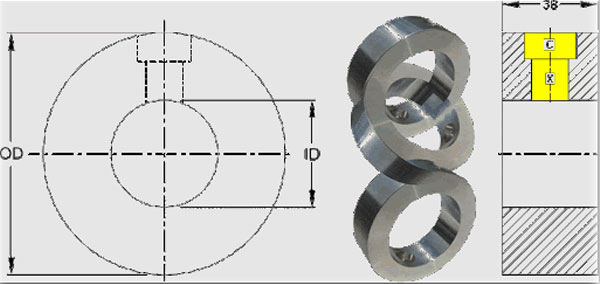

ANSI B16.5 / ASME B16.47 Bleed Ring Flange Dimensions

ANSI B16.5 / ASME B16.47 Bleed Ring Flange Dimensions

Line Size I.D. O.D.
150# 300# 600# 900# 1500# 2500#
1 1 1/8 2 1/2 2 3/4 2 3/4 3 3 1/8 3 3/8
1 1/2 1 5/8 3 1/4 3 5/8 3 5/8 3 3/4 3 7/8 4 5/8
2 2 1/8 4 4 1/4 4 1/4 5 1/2 5 5/8 5 3/4
1/2 5/8 1 3/4 2 2 2 3/8 2 3/8 2 5/8
3/4 7/8 2 1/8 2 1/2 2 1/2 2 5/8 2 5/8 2 7/8
2 1/2 2 1/2 4 3/4 5 5 6 3/8 6 1/2 6 5/8
8 8 10 7/8 12 12 1/2 14 13 7/8 15 1/4
10 10 1/8 13 1/4 14 1/8 15 5/8 17 17 1/8 18 3/4
12 12 16 16 1/2 17 3/4 19 3/8 20 1/2 21 5/8
3 3 1/8 5 1/4 5 3/4 5 3/4 6 1/2 6 7/8 7 3/4
4 4 1/8 6 3/4 7 7 1/2 8 8 1/4 9 1/4
6 6 1/8 8 5/8 9 3/4 10 3/8 11 1/4 11 1/8 12 1/8
14 14 17 5/8 19 19 1/8 20 1/4 22 1/2 –

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ANSI/ASME B16.5 Bleed, Drip & Vent Ring Flange. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Bleed, Drip & Vent Ring Flange. Bleed Ring Flanges is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on ANSI 16.47 Bleed, Drip & Vent Ring Flange.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing custom size ANSI/ASME B16.47 Bleed, Drip & Vent Ring Flange with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our EN 1092-1 Bleed, Drip & Vent Ring Flange, MSS SP-44 Bleed, Drip & Vent Ring Flange, ISO Standard Drip Ring Flange.
  • As leading exporters and suppliers we keep a buffer stock of ASME B16.5 Bleed, Drip & Vent Ring Flange in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • ANSI/ASME B16.5 Flanges, ANSI/ASME B16.47 Bleed, Drip & Vent Ring Flange are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Bleed Ring Pipe Flanges are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on Bleed, Drip & Vent Ring Flange.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 1092 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Industrial Bleed, Drip & Vent Ring Flange in India.
